LED PANEL 240x480 MM 288 LEDS 40W RGB+ IP20

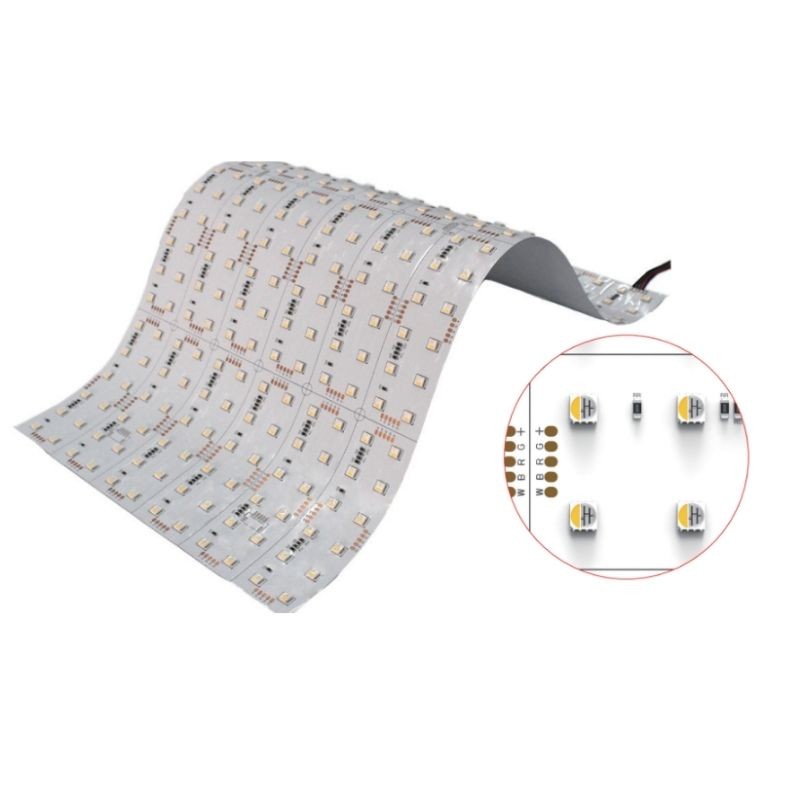

The PL288F24I-RGBW LED panel from VISCOM LEDS AND FRAMES offers an ideal combination of multi-color RGB lighting and high-quality white light, with the versatility of a flexible, slim, and cuttable panel. Its form factor allows it to adapt to curves or irregular surfaces, and it can be easily installed with thermal adhesive or screws. It requires a compatible RGBW SPI controller to realize its full potential.

Main features:

• Input voltage: 24V DC
• Power: 60W per panel
• Luminous flux: up to 3446 lm per panel (RGBW 6500K)
• Luminous efficiency: up to 57 lm/W
• Number of LEDs: 288 LEDs per panel
• Configuration: RGB + White (2700K / 3000K / 4000K / 6500K)
• CRI: >90 for maximum color fidelity

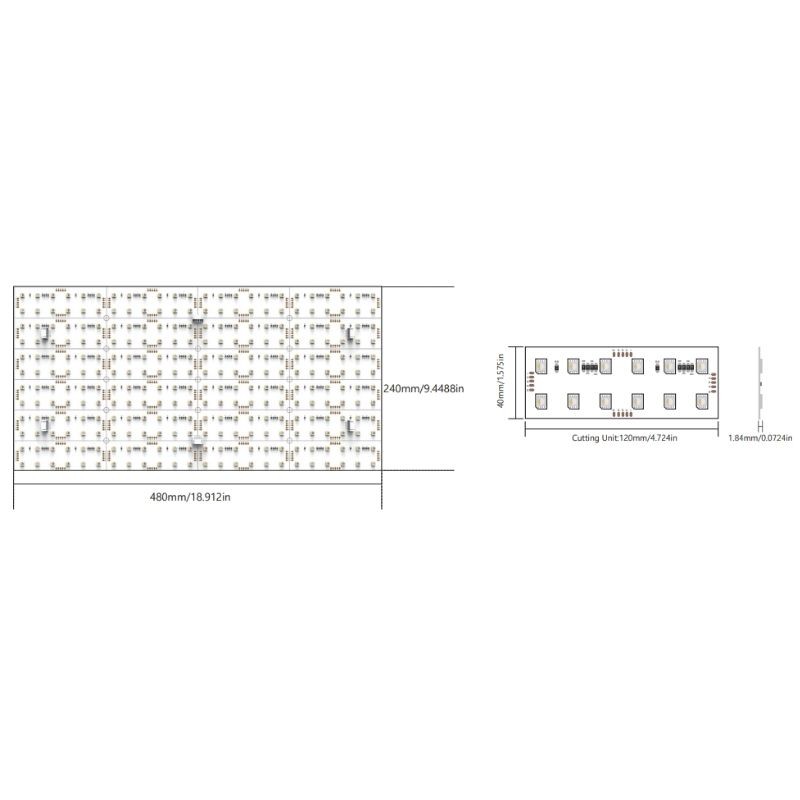

• Minimum cut: every 120 mm
• Dimensions: 480 mm × 240 mm
• Thickness: 1.84 mm
• Protection: IP20 (indoor use)
• Estimated lifespan: 50,000 hours
• Installation: Thermal adhesive or screws
• Compatible with RGBW SPI controllers

This panel is specifically designed for projects requiring rich, fully customizable lighting, such as decorative retail installations, designer furniture, display cases, or stage environments. RGBW mixing allows for the creation of both color effects and high-quality white scenes, making it a professional solution for interior spaces where aesthetics and lighting versatility are key.
