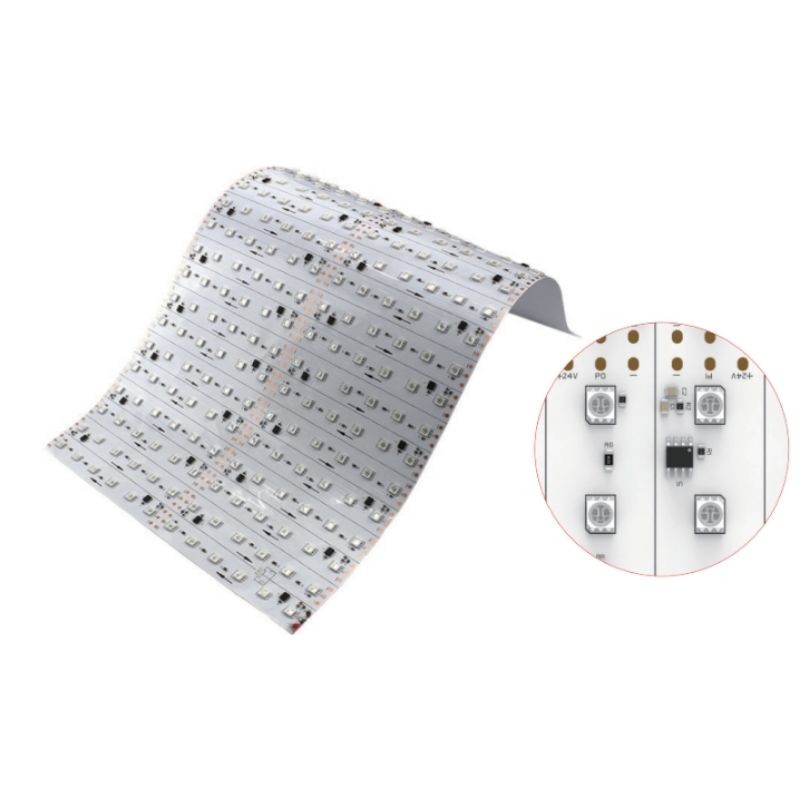

LED PANEL 240x480 MM 288 LEDS 75W DIGITAL IP20

The PL288F24I-DIG LED panel from VISCOM LEDS AND FRAMES is designed for easy, solder-free installation. The panel can be attached with adhesive or screws and is compatible with professional SPI controllers. Its high-quality construction ensures a long lifespan, maintaining consistent performance in demanding indoor projects.

Main features

• Input voltage: 24V DC
• Consumption: 75W per panel
• Number of LEDs: 288 LEDs/m
• Digital technology: SPI with TM1923 chip
• Colors: Dynamic RGB, controllable per pixel
• Luminous flux: 1725 lm per panel
• Efficiency: 23 lm/W
• Opening angle: 120°
• Format: Flexible panel, cuttable every 240 mm (12 LEDs)

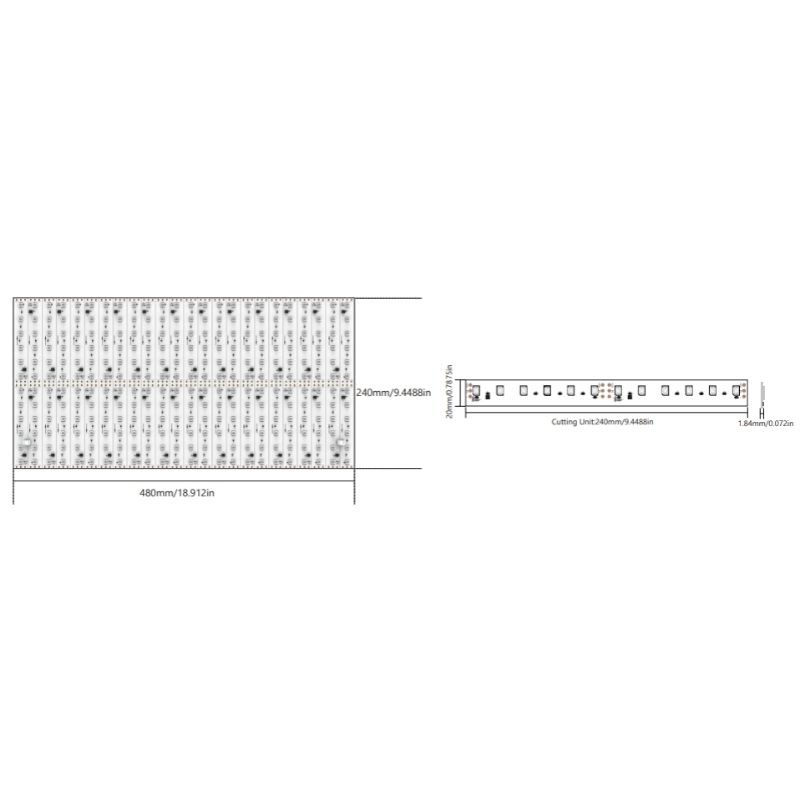

• Dimensions: 480 mm × 240 mm
• Thickness: 1.84 mm
• Protection: IP20 (indoor use)
• Installation: Adhesive or with screws
• Estimated lifespan: 50,000 hours
• Requires compatible SPI controller

Ideal for environments where lighting needs to provide movement, dynamism, and customization, this panel is perfect for animated lettering, backlit retail furniture, counters, display cases, or high-impact decorative projects in commercial, stage, and corporate settings. The per-pixel RGB animation option allows for the design of unique and fully customized visual effects.
