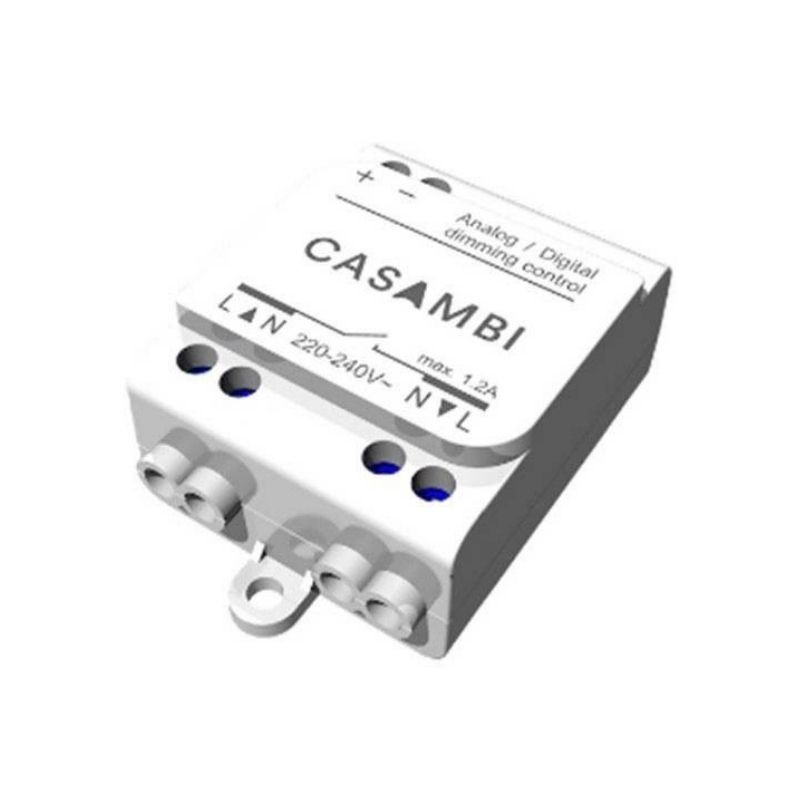

BLUETOOTH CONTROL UNIT FOR CASAMBI LED DRIVERS

The CBU-ASD is a wireless protocol gateway designed to integrate dimmable lighting devices using 0-10V, 1-10V or DALI signals into CASAMBI networks, with control via Bluetooth using the free CASAMBI app. With a compact format (56.5 × 35.8 × 22.3 mm), it works with a 220-240Vac 50Hz input and supports input from the CASAMBI network itself or from external push buttons. It has configurable 0-10V/1-10Vdc or DALI outputs (DT6/DT8, RGB, RGBW, CCT, broadcast) and includes an integrated DALI source, allowing drivers or luminaires to be controlled without an additional source. It is not suitable for standard DALI networks according to IEC 60929, only for closed systems. It includes a 12Vdc output for an external relay, which allows luminaires that do not support switching off from a control signal to be completely switched off. It can also be configured as a push-button or sensor input device, triggering scenes, dimming, or groups. With a 0.6A power consumption and Class II (ungrounded), it operates between -20 and +50°C. It allows luminaires to be integrated into CASAMBI networks of up to 127 devices, with intelligent control, scenes, timers, circadian dimming, sensor-based automation, and secure cloud management. Manufactured by CASAMBI and with a 3-year warranty, it is a flexible and powerful solution for professional installations without the need for additional wiring.
