CASAMBI BLUETOOTH-ADJUSTABLE TRIAC

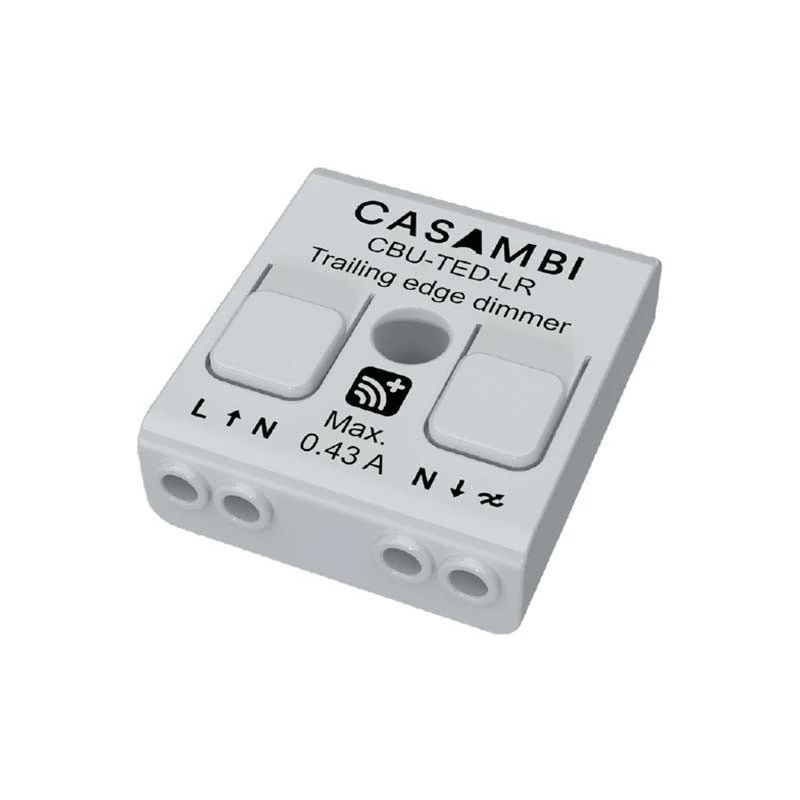

The CBU-TED-LR is a long-range trailing-edge TRIAC dimmer designed to control dimmable luminaires using Bluetooth Low Energy technology via the CASAMBI system. With its compact form factor (40.4 × 36.2 × 14 mm) and IP20 protection rating, it can be easily installed in wall mechanisms, flush-mount boxes, or inside luminaires. It operates with an input range of 85-240V AC at 50-60Hz and offers a regulated output of up to 100W at 230V AC (refer to the datasheet for specific load types), with a maximum starting current of 10A and no-load consumption of less than 0.3W. The communication range is up to 50 m indoors and 200 m outdoors, enabling its use in large-scale installations thanks to the CASAMBI mesh network, which ensures robustness, operational continuity, and cloud-based configuration with no single points of failure. Control is possible via the CASAMBI app for iOS and Android or through conventional switches (Smart Switching function). It is compatible with dimmable LED lamps, incandescent bulbs, or any load suitable for TRIAC dimming. It operates between -20°C and +45°C, with a maximum Tc of 75°C, and is CE and RoHS certified. Manufactured by CASAMBI, it comes with a 3-year warranty and allows for the creation of smart, scalable, and intuitive lighting systems without the need for additional wiring.
