DMX OR DALI MULTI-CHANNEL ADJUSTABLE CONTROL

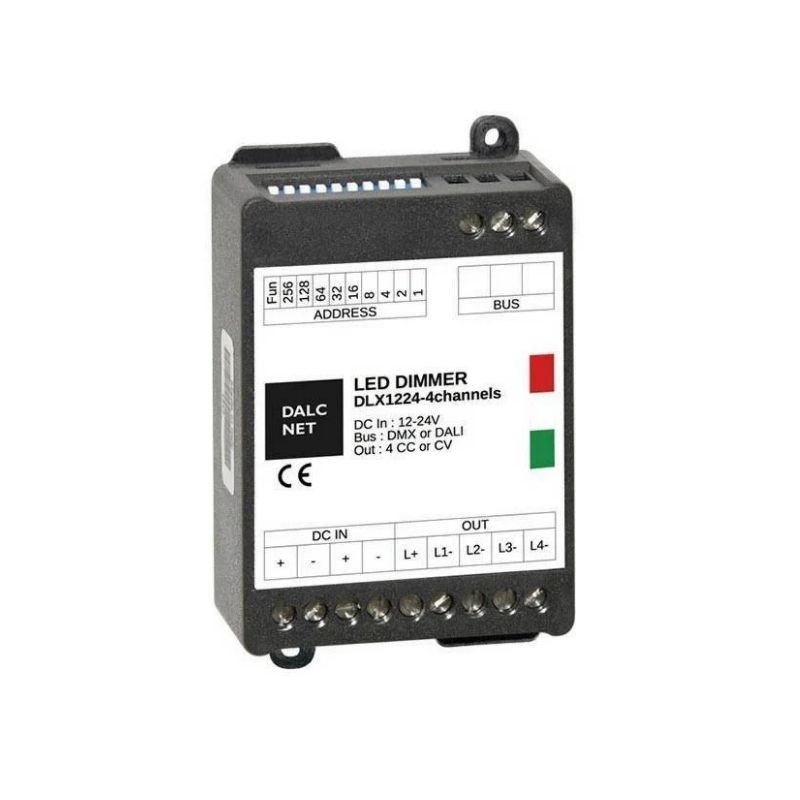

The DLX1224-4CV-DMX is a compact and versatile controller specifically designed to power constant voltage RGB or RGBW LED strips. It features a 10.8 to 26.4VDC input and four outputs of up to 5A per channel (10A total maximum). It offers a maximum power output of 120W at 12VDC and 240W at 24VDC, with a typical efficiency of 95%. Operation can be configured via DMX + RDM protocol or in standalone mode, with adjustable sequences using DIP switches. It supports both manual and bus-based DMX addressing and provides smooth on/off switching and an optimized dimming curve for enhanced visual comfort. Its compact size (88 × 54 × 26 mm) and IP20 protection rating allow for discreet installation in confined spaces. This model is specifically designed for constant voltage LED strips and is not compatible with constant current luminaires. With an operating range of -10 to +40°C, a 2-year warranty, and manufactured by DALCNET, it is a professional and reliable solution for DMX-controlled LED lighting installations.
