DALI CONTROL SYSTEM

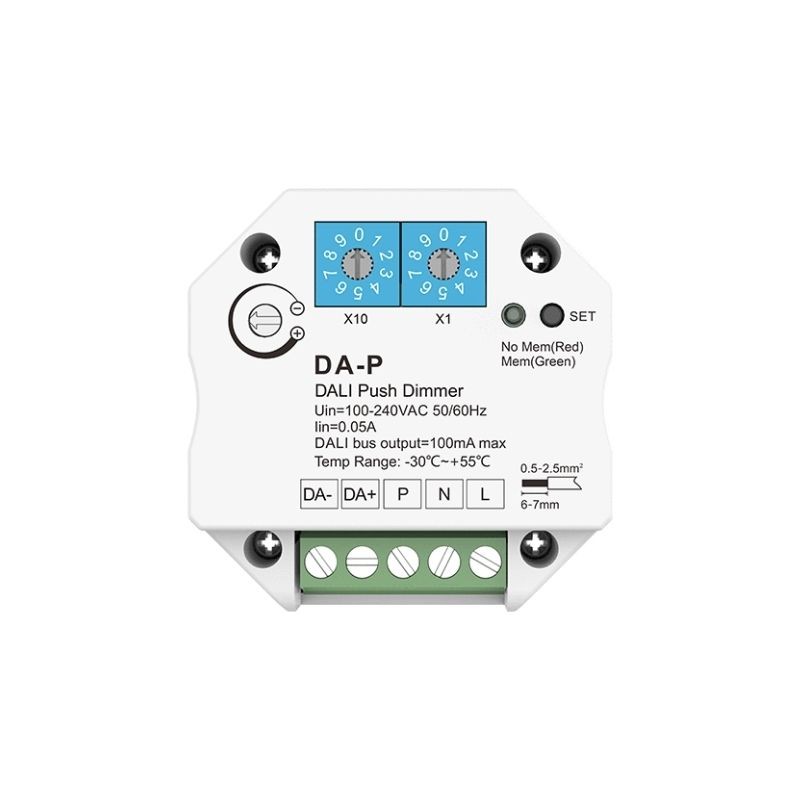

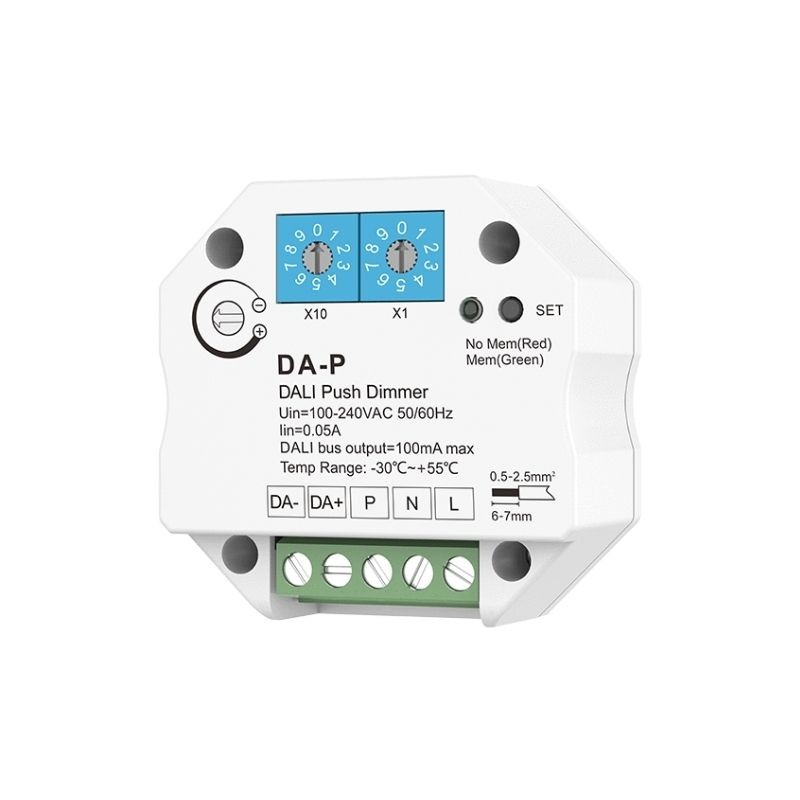

The DA-P is a compact dimmer designed to control DALI-compatible devices using a standard push button. It allows luminaires to be switched on and off with a short press and light intensity adjustment with a long press. It operates in both unicast and broadcast modes and offers DALI address programming via two rotary switches (0–63 for unicast, 70–85 for groups, and 90 for broadcast), as well as dimming speed adjustment via a potentiometer. It features a memory function to recall the last used brightness level, with an LED indicator (green on, red off). Powered by 100–240 VAC, it provides a 16 VDC DALI output up to 100 mA. Its compact design (60 × 60 × 40 mm, 61 g), IP20 protection, and operating temperature range of -30°C to +55°C make it ideal for residential and commercial installations requiring a simple, reliable, and efficient DALI control solution. It comes with a 5-year warranty.
