DALI RECEIVER DIMMER DT6/DT8 4CH 150500 Ma

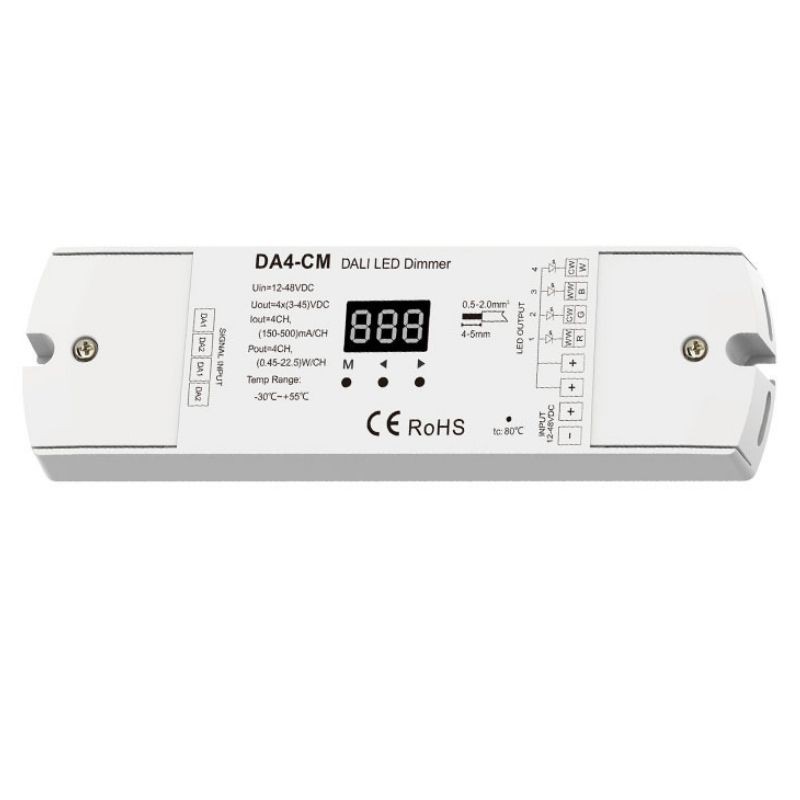

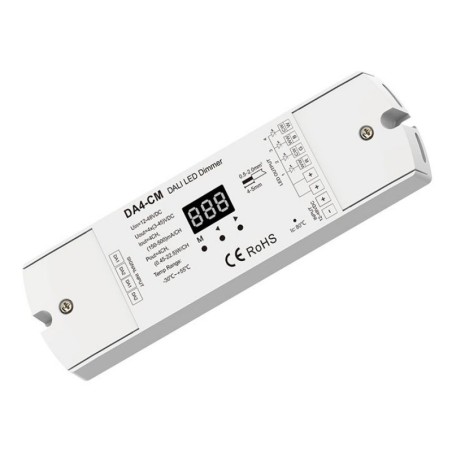

The DA4-CM is a constant current DALI receiver with four output channels, designed to control LED luminaires in white, dynamic white (DT8-TC), RGB (DT8-RGB), or RGBW (DT8-RGBW) configurations. It is available in two versions depending on the output current range: 150 to 500 µA and 350 to 1200 µA per channel. It features a digital display for manually configuring the light type, DALI address, and output current, although these settings can also be automatically assigned by a DALI master. It supports PWM signal dimming with adjustable frequencies (1000, 2000, 4000, or 8000 Hz), and its dimming curve complies with the DALI IEC 62386 standard. This compact receiver (175 × 54 × 27 mm) operates on an external 12–48 VDC power supply and can deliver up to 54 W total (in the 1200 mA version). Its IP20-rated housing is equipped with protection against reverse polarity, overheating, and short circuits, and features self-diagnostic functions. It is a versatile and safe solution for professional lighting projects managed by DALI systems.
