MASTER DALI CCT PANEL CONTROLLER 4 ZONE CV

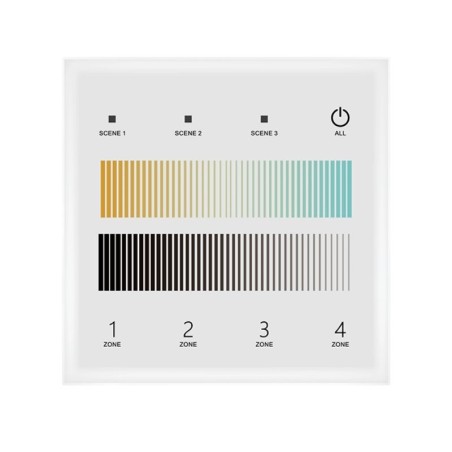

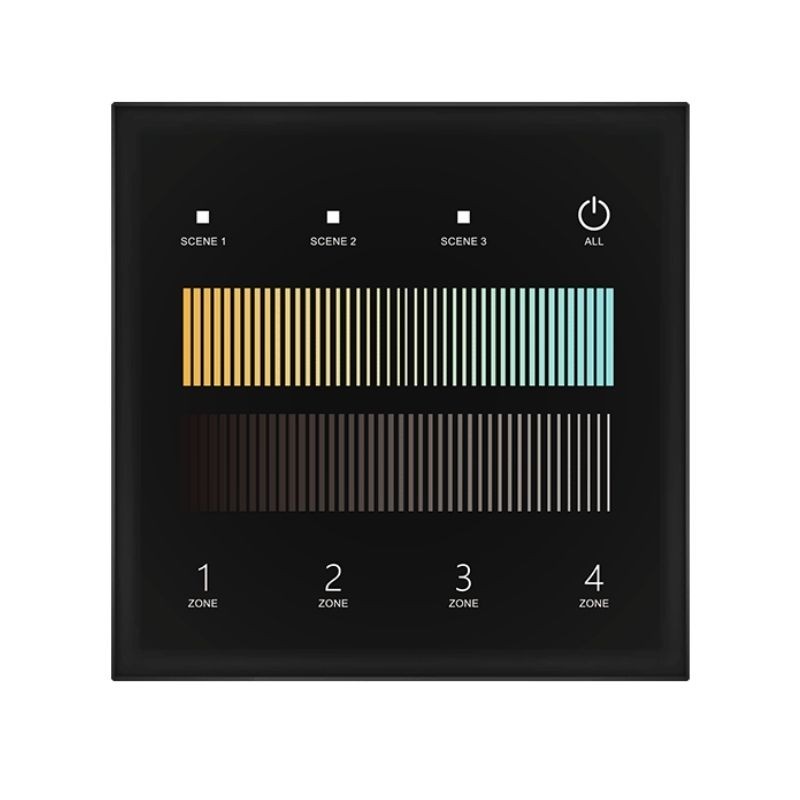

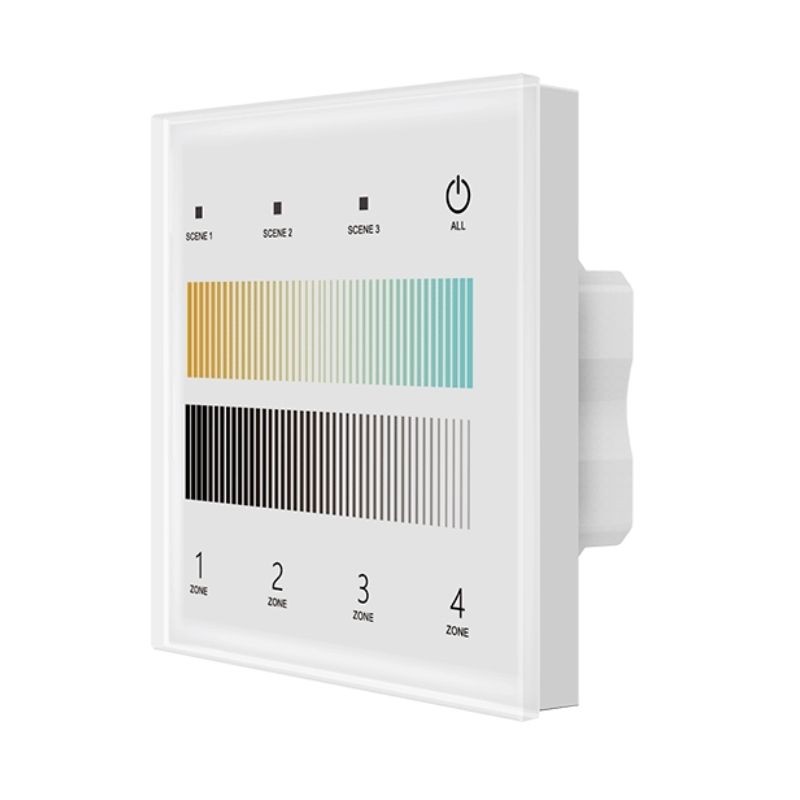

The TD2-4S is an elegant wall-mounted touch panel designed for DALI dynamic white (Tunable White) lighting control. Capable of managing up to four independent zones, it allows for adjusting both the intensity and color temperature of compatible luminaires using its touch slider and backlit buttons. It is compatible with the standard DALI protocol (IEC 62386-102, -207, -209) and supports DT8 dimming. Power can be supplied directly via the DALI bus or via a 24V DC power supply. Luminaire addressing is configured using rotary switches on the back, offering unicast, group, and broadcast modes. Furthermore, it incorporates 2.4GHz connectivity for wireless remote control, making it a versatile and modern solution. Its white tempered glass design, standard dimensions of 86×86×34.5mm and intuitive interface make it ideal for residential, commercial or architectural environments where comfort and aesthetics are sought in the control of dynamic white light.
