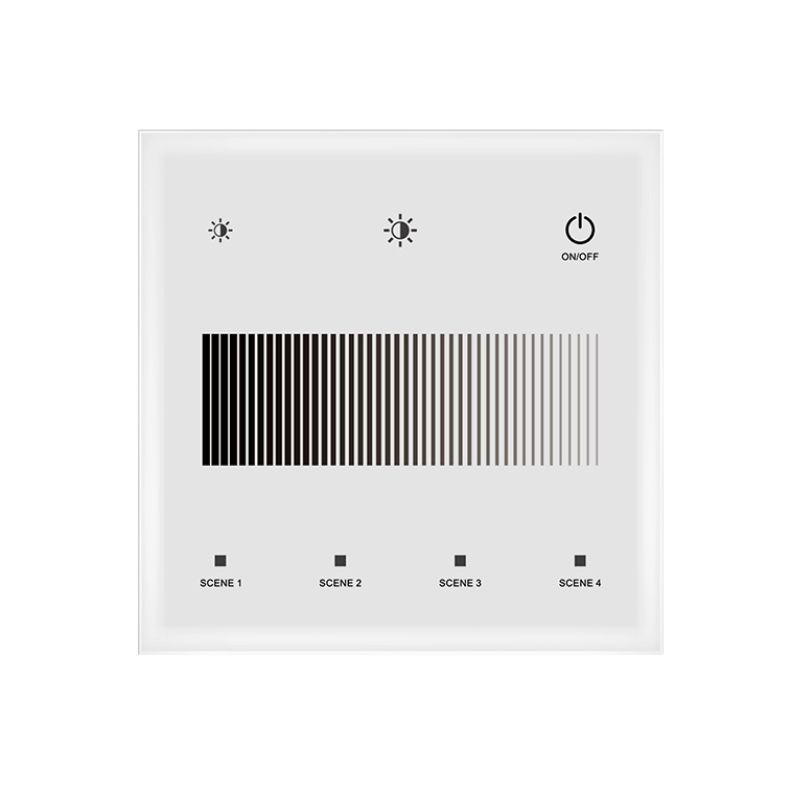

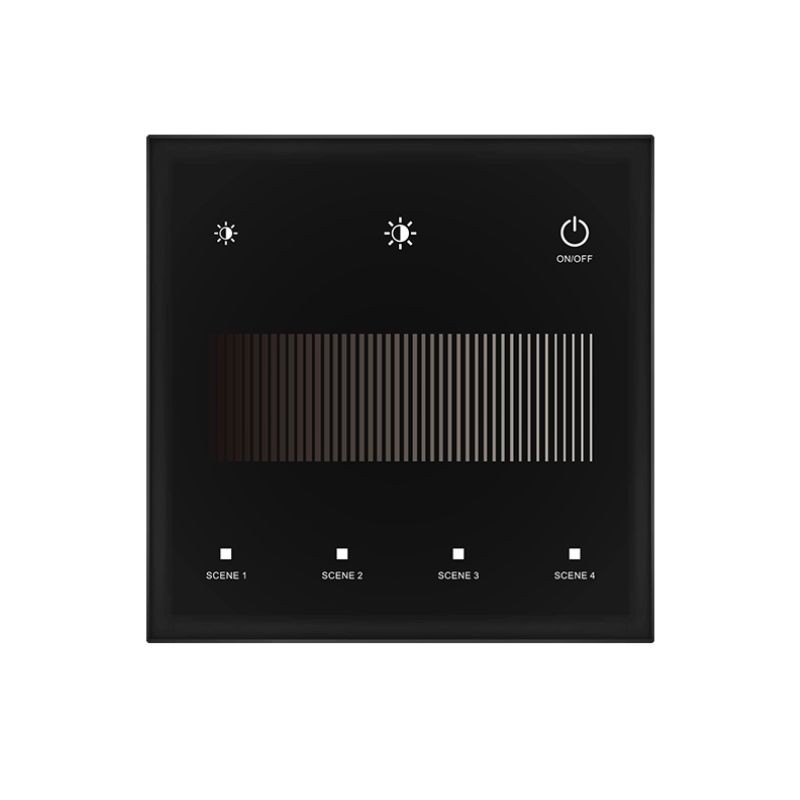

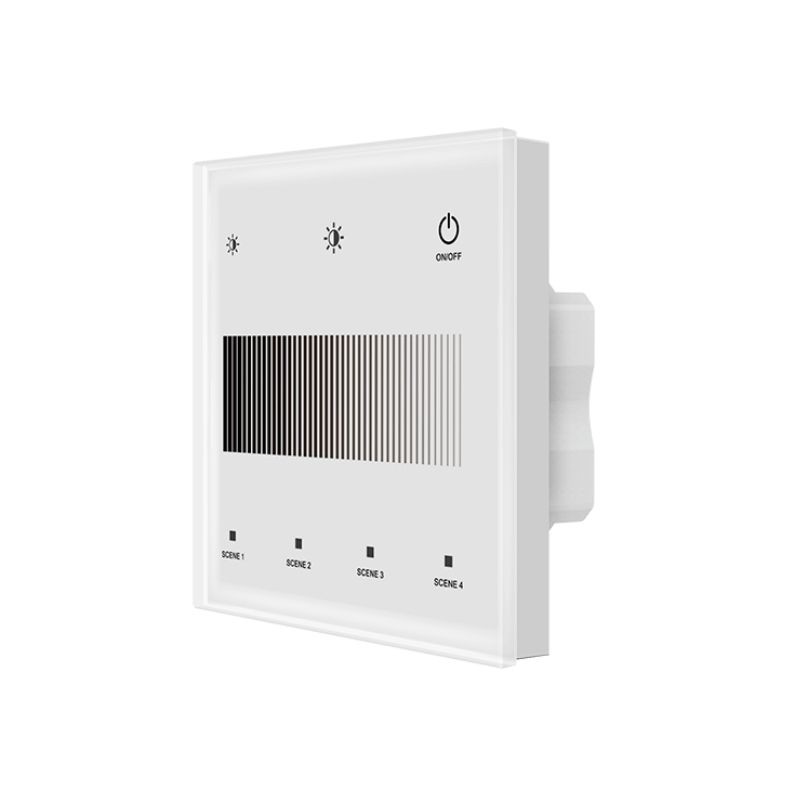

MASTER DALI DIMMER PANEL CONTROLLER 1 ZONE CV

The TD1-S is an elegant wall-mounted touch panel designed for controlling monochrome (white) lighting using the DALI protocol, ideal for simple on/off and dimming applications. Compatible with the DALI DT6 standard, it allows luminaire control via a white tempered glass touch panel with an intuitive interface and LED backlighting. It operates in unicast, group, and broadcast modes and can be powered directly from the DALI bus or via an external 24VDC source. Its zone-free design makes it a practical solution for individual spaces such as offices, homes, or retail spaces. It also incorporates 2.4GHz wireless connectivity, making it compatible with remote controls of the same frequency. Measuring 86 × 86 × 34.5 mm and mounting in a standard box, the TD1-S offers a combination of functionality and aesthetics for modern monochrome LED lighting installations.
