MASTER PANEL CONTROLLER DALI DIMMER 4 ZONE CV

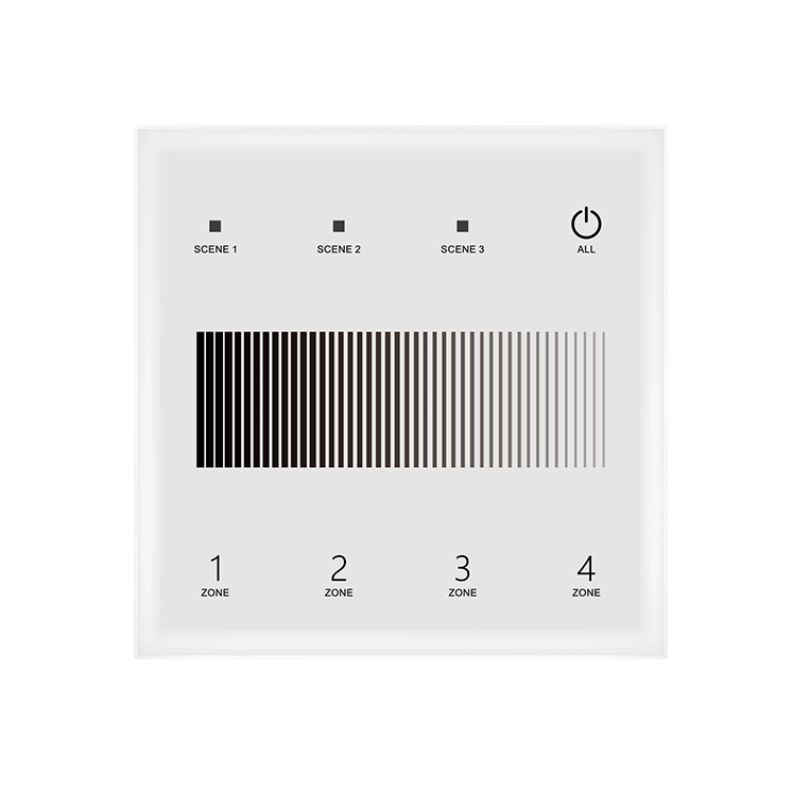

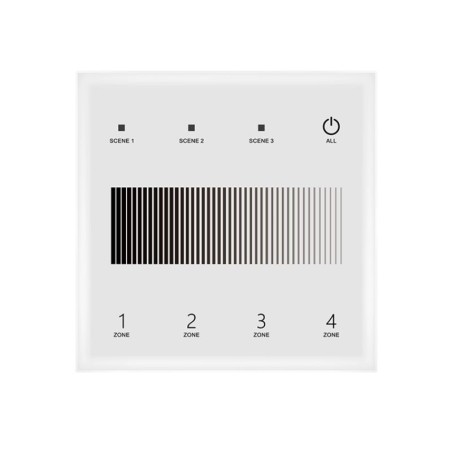

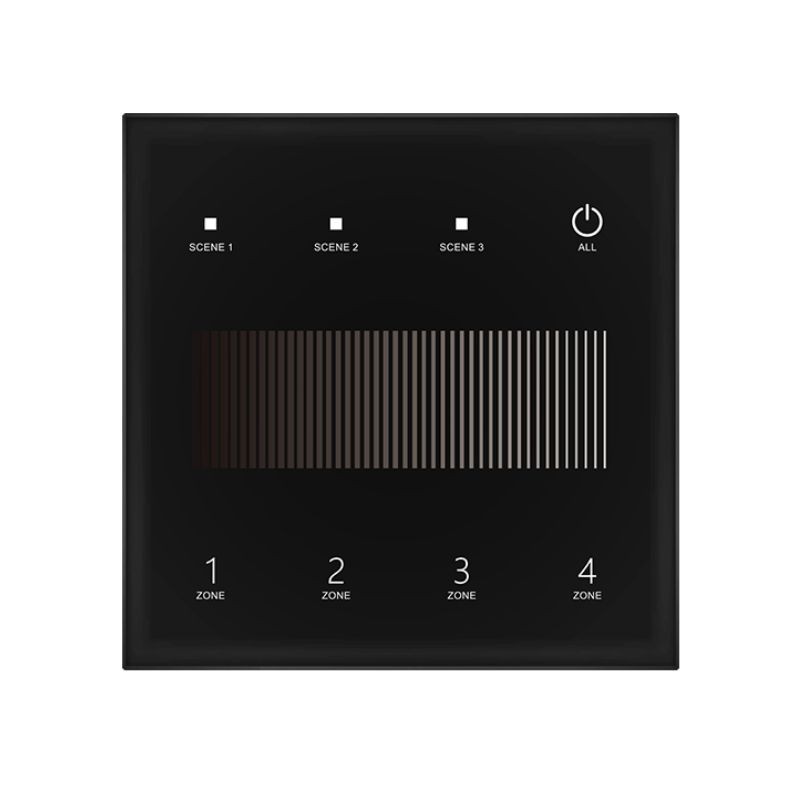

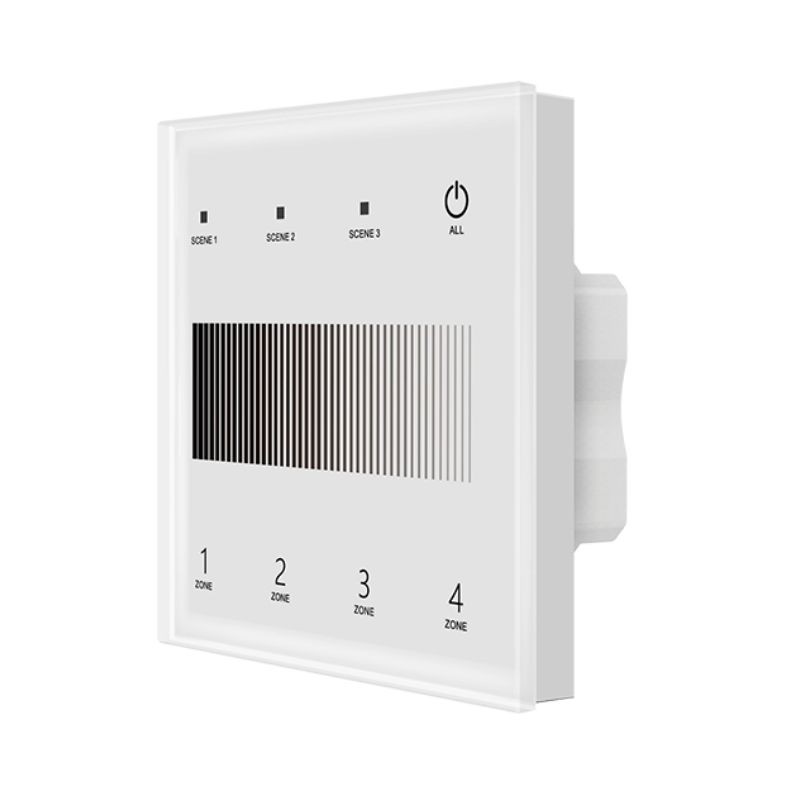

The TD1-4S is a wall-mounted touch panel that acts as a DALI master controller for monochrome lighting systems. Designed to manage up to four independent zones, it allows brightness control of connected luminaires using an ultra-sensitive touch slider and backlit buttons with LED indicators. Compatible with the standard DALI protocol (IEC 62386-102, -207, -209) and supporting DT6 dimming, this panel can be powered directly from the DALI bus or via a 24VDC source. DALI address assignment is easily done via encoder switches on the rear of the device, enabling unicast, multicast, and broadcast control modes. Additionally, it offers the option of wireless remote control via a 2.4GHz keyfob for added flexibility. Featuring an elegant design in highly durable white glass, dimensions of 86?×?86?×?34.5?mm and a 5-year warranty, the TD1-4S is ideal for residential and commercial applications requiring efficient and aesthetic DALI lighting control.
