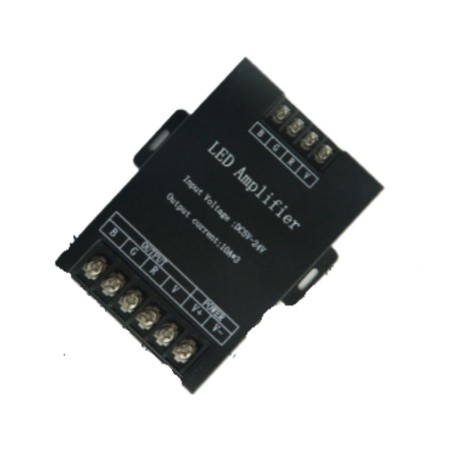

RGB AMPLIFIER 524V 10A

The AMPRGB-10 is a high-performance, metal-housed RGB amplifier designed for constant-voltage LED lighting systems. It operates with a DC 5V to 24V input range and can amplify the PWM (pulse-width modulation) signal from any RGB controller, ensuring consistent signal delivery to long runs of LED strips. With a 10A output capacity per channel, it can control loads up to 150W at 5V, 360W at 12V, and 720W at 24V.

This amplifier allows for unlimited expansion of LED installations: by adding one or more amplifiers, you can double the number of LED strips controlled by a single controller, keeping the color and brightness effects synchronized throughout the installation.

The design features screw terminals for secure connection, common anode connection mode, and compact dimensions (110.7 × 75.1 × 25.5 mm), making it easy to integrate into various projects. Its low standby power consumption (

It's ideal for architectural, decorative, commercial, or residential lighting applications where stable and uniform RGB system expansion is required. It also withstands demanding temperature conditions between -20°C and 60°C, making it a robust and reliable solution.
