1.5W 12V NARROW PERIMETER LED MODULE

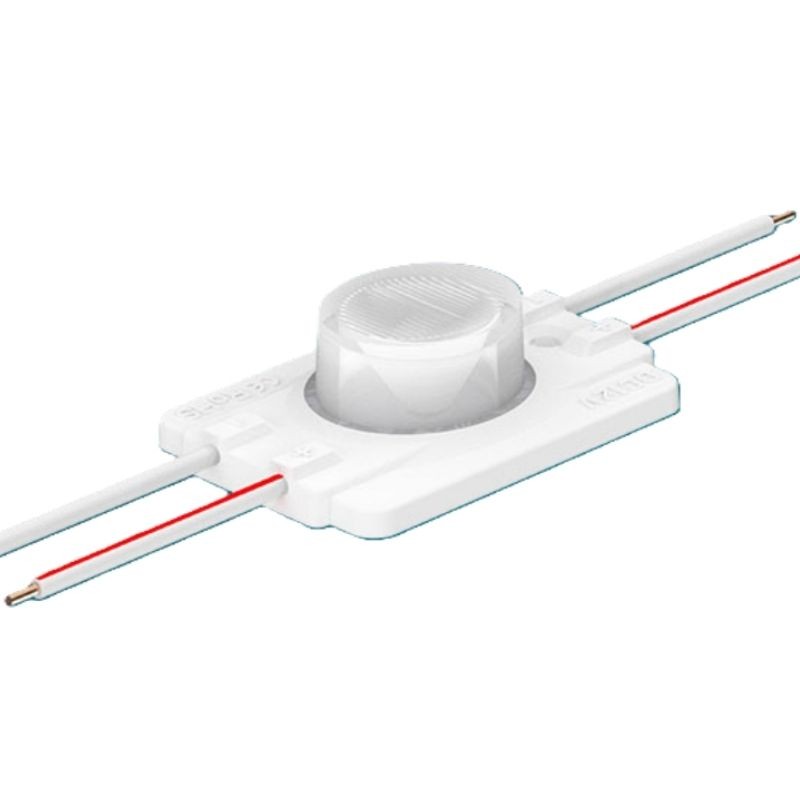

The PR15V12T LED module is specifically designed for perimeter backlighting of lightboxes and shallow-depth lettering. Its narrow 13° × 25° optics allow for precise light direction, achieving uniform illumination around the entire perimeter without creating visible spots.

Main features:

• Color temperature: 6500K (cool white)
• Power: 1.5W per module, 12V DC
• Luminous flux: Up to 100 lm per module
• Narrow optics: 13° × 25° for precise and directional illumination
• IP66 Protection: Water and dust resistant

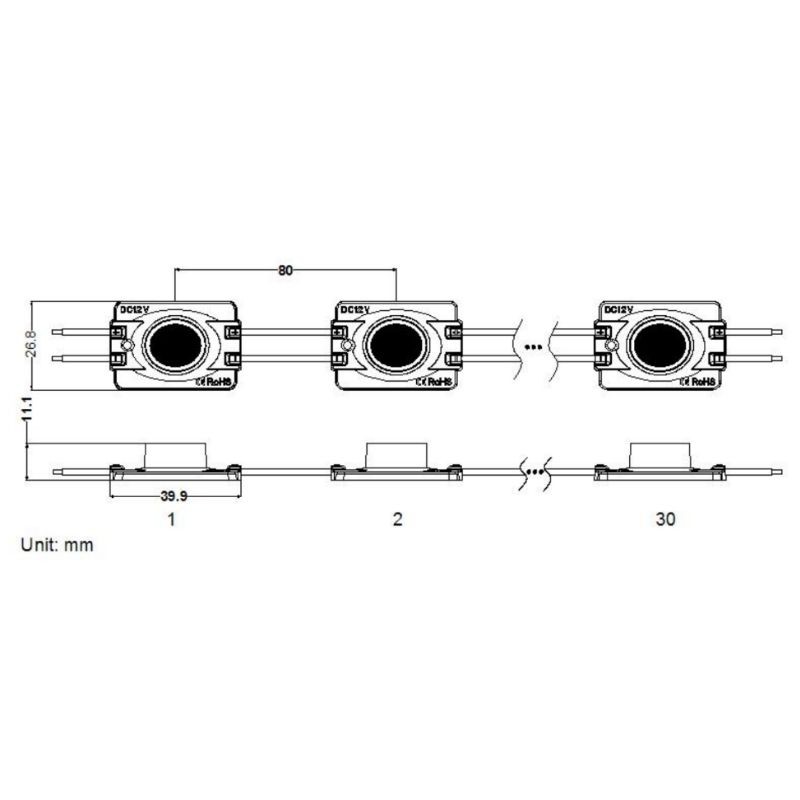

• Compact dimensions: Suitable for installations with limited space
• Constant current technology: Maximum stability in long installations (up to 30 modules in series)
• Long lifespan: Designed to operate efficiently and continuously on professional projects

Perfect for contour and edge lighting in three-dimensional letters and shallow light boxes. It's used in high-impact commercial signage, both indoors and outdoors, providing clear, even, and precise light even in the most demanding designs.
