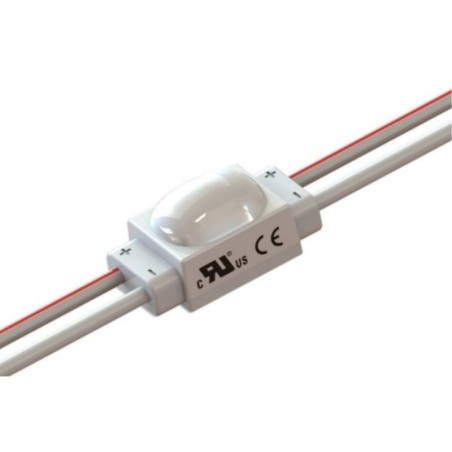

MINIPLUS LED MODULE 1SMD 0.36W 170º 12V BAG OF 100 UNITS

The MINI PLUS LED module is a compact and powerful solution, specially designed to illuminate small spaces with uniform light distribution. Thanks to its oval optics and miniaturized design, it can be easily installed in small channel letters, shallow light boxes, and signage projects that require precision without sacrificing brightness. Available in cool white (6500K) and warm white (3000K).

Main features:

• Luminous flux: 41 lm per module
• Power consumption: 0.36W per module, 12V DC
• Beam angle: 170° x 130° for wide and even dispersion
• IP67 protection: Suitable for indoor and outdoor use

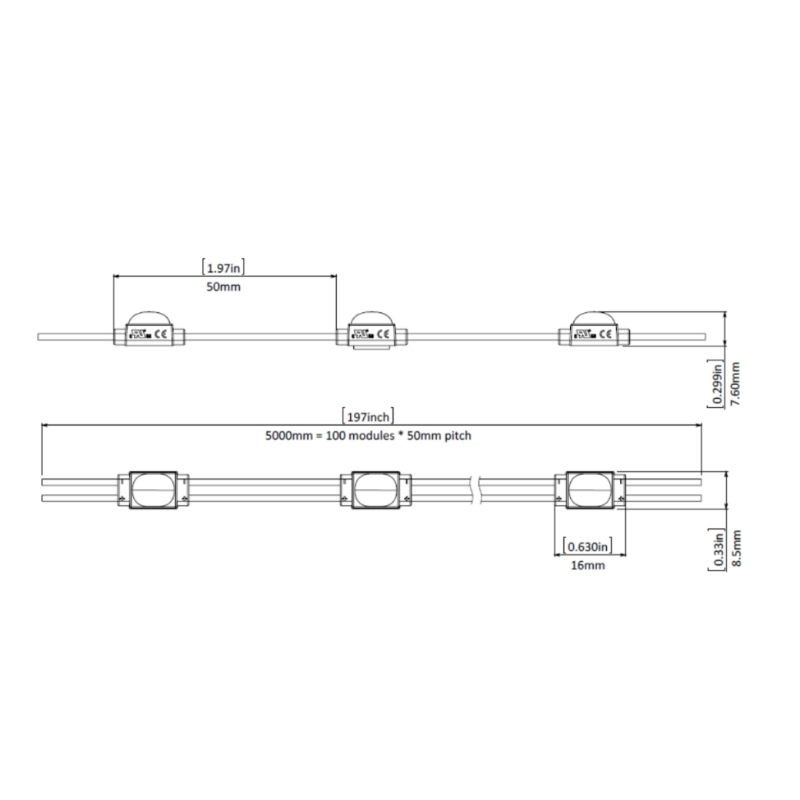

• Compact dimensions: 16mm x 8.5mm x 8mm
• Long lifespan: 50,000 hours and a 5-year warranty
• Up to 100 modules per string, with low voltage drop

The MINI PLUS module is ideal for backlighting small channel letters, signage with complex shapes, and light boxes with depths between 25 and 80 mm. Its discreet design makes it the perfect choice for projects where space is limited but professional lighting is required, whether on facades, shop windows, commercial signs, or decorative environments that demand a welcoming and elegant atmosphere.
