TRIAC TO RF DIMMER CONVERTER 1 ZONE

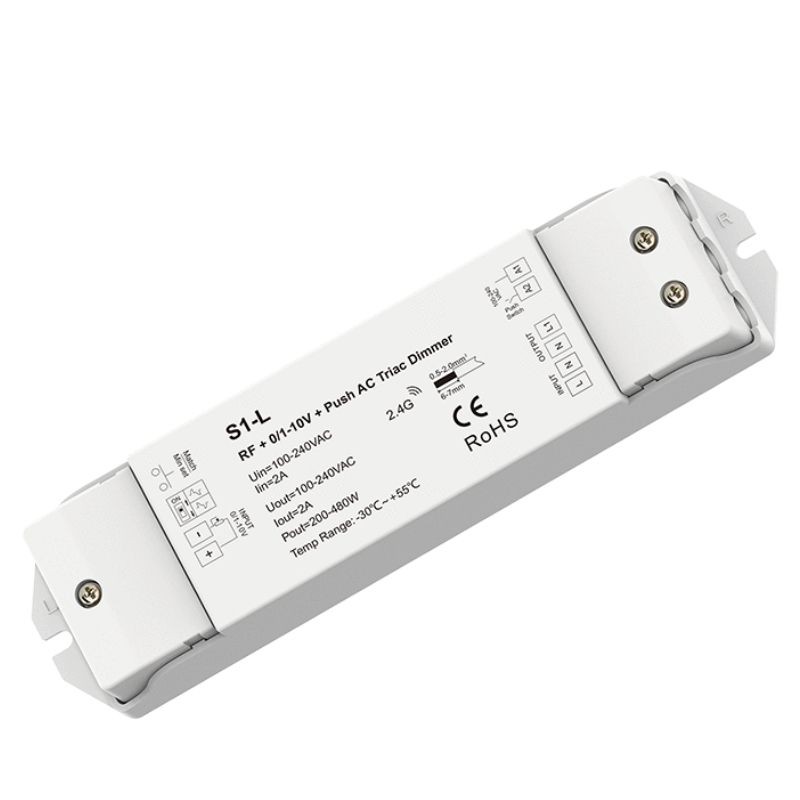

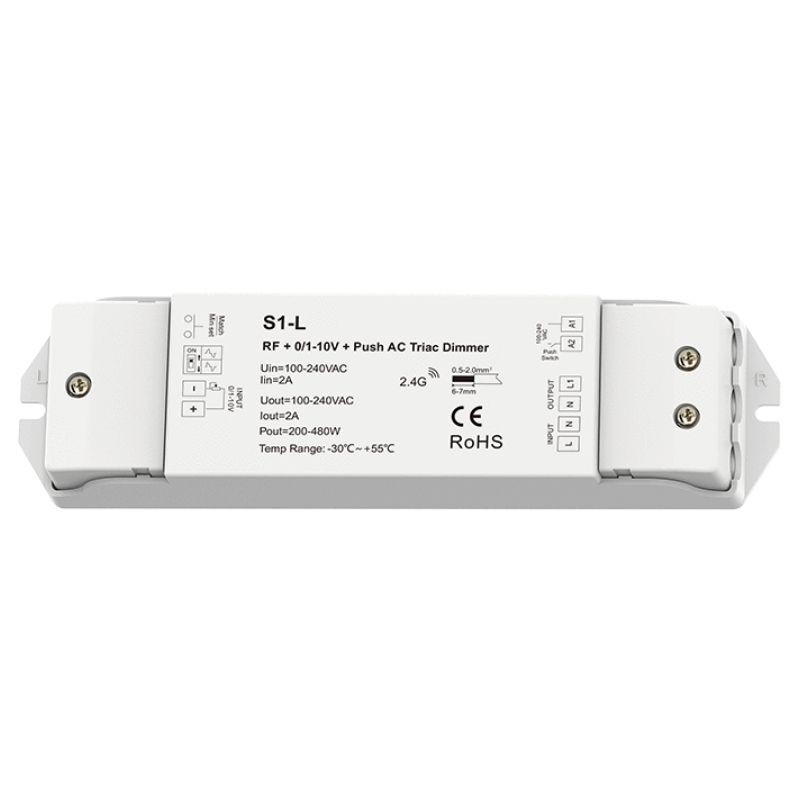

The SC-TRIAC-S1L is a single-channel AC phase-cut Triac dimmer designed to control dimmable single-color LED, incandescent, and halogen lamps. It combines 2.4 GHz RF control, a 0/1-10 V signal input, and an external push-button dimmer, allowing for smooth, flicker-free dimming across 256 levels (0-100%) with selectable up- or down-phase cutoff via a DIP switch. It offers a power rating of up to 480 W at 220 V (or 240 W at 110 V) and a maximum output current of 2 A. Advanced features include an adjustable minimum level, adjustable on/off speed, automatic over-temperature protection, and a calibration button for pairing with RF remotes. Its robust and compact design (178×50×38mm) gives it versatility for mounting in standard mechanism boxes, in addition to a 5-year warranty.
