MEANWELL 15W 12V IP20 POWER SUPPLY

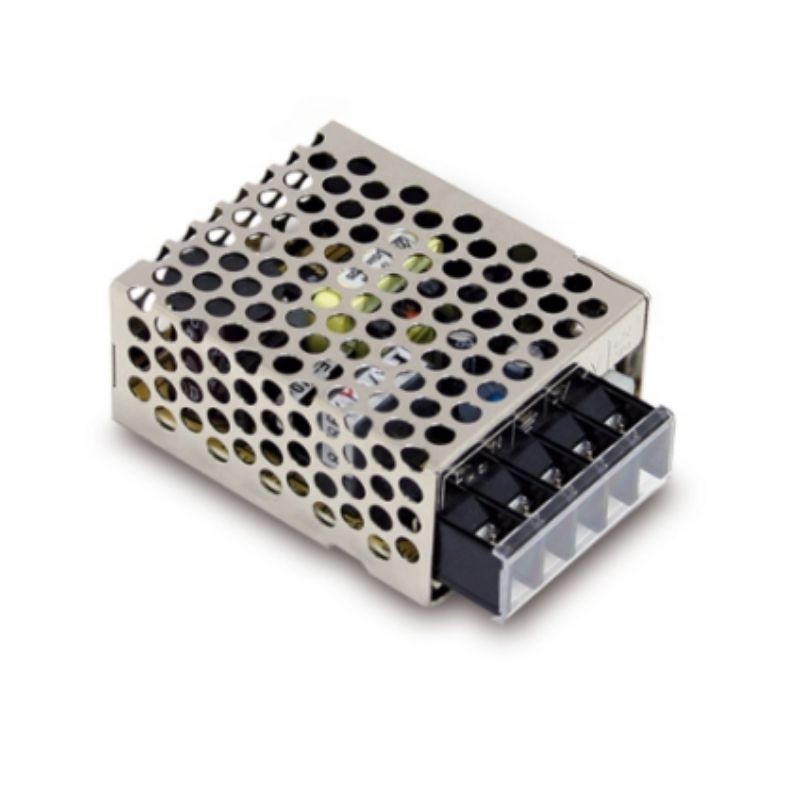

The MEAN WELL RS-15-12 is a 15.6W switching power supply designed for industrial applications requiring reliability and compact size. Its grid-frame design facilitates heat dissipation and allows for integration into a variety of installation types.

It supports a universal input range of 85 to 264V AC at 47-63Hz, providing a 12V DC output with a maximum current of 1.3A. The output voltage is adjustable via potentiometer within a range of 10.8V to 13.2V DC, allowing it to adapt to different load needs.

Typical efficiency is 81%, with a low no-load power consumption of less than 0.5W, making it energy efficient. It features reinforced 3000V AC insulation between input and output and a low noise level and ripple of 120mVp-p, ensuring a clean and stable power supply.

Its operating temperature range is from -20°C to +70°C, with drift curves according to the data sheet to ensure performance under demanding conditions. Its compact dimensions (62.5 x 51 x 28 mm) allow for mounting on a panel, wall, or DIN rail using the KDIN accessory.

The RS series is especially suitable for industrial applications, automation, signaling and electronic equipment that require reliable, compact and easy-to-integrate power supplies.

The RS-15-12 model includes a 3-year warranty and is certified by CE, BIS, BSMI, RCM, EAC, CCC, TUV, UKCA, and UL.
