MEANWELL 25W 12V IP20 POWER SUPPLY

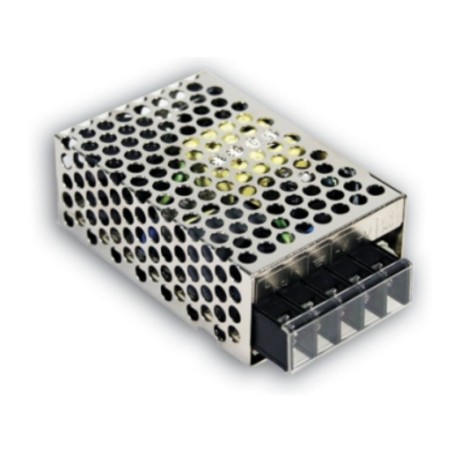

The MEAN WELL RS-25-12 is a 25.2W switching power supply designed for industrial applications requiring reliability and a compact design. Its grid-frame construction optimizes heat dissipation and facilitates integration into various installations.

It supports a universal input range of 88 to 264V AC at 47-63Hz, offering a 12V DC output with a maximum current of 2.1A. The output voltage is adjustable via potentiometer between 10.8V and 13.2V DC, adapting to the specific needs of the load.

Typical efficiency is 81.5%, with no-load power consumption of less than 0.5W, ensuring energy efficiency. It features reinforced 3000V AC insulation between input and output, with a low noise level and 120mVp-p ripple, ensuring a clean and stable power supply.

The operating temperature range extends from -20°C to +70°C, with drift curves specified in the data sheet to maintain performance under demanding conditions. With compact dimensions of 78 x 51 x 28 mm, it can be mounted on a panel, wall, or DIN rail using the KDIN accessory.

The RS series is ideal for industrial applications, automation, signaling, telecommunications, and electronic equipment, offering a reliable, compact, and easy-to-integrate solution.

This model comes with a 3-year warranty and has international certifications such as CE, BIS, BSMI, RCM, EAC, CCC, TUV, UKCA, and UL.
