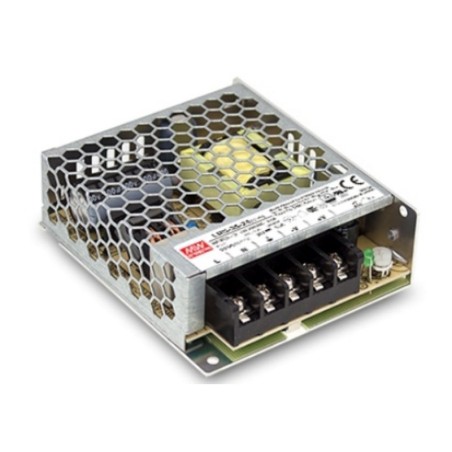

MEANWELL LRS35 35W 12V IP20 POWER SUPPLY

The MEAN WELL LRS-35-12 is a 36W switching power supply designed in a compact, low-profile (1U) form factor, ideal for industrial, automotive, mechanical equipment, and household appliance applications. Its mesh case ensures optimal heat dissipation, allowing for reliable performance in confined spaces.

It accepts a universal input range of 85 to 264V AC at 47-63Hz, supplying a 12V DC output with a maximum current of 3A. The output voltage is adjustable via potentiometer within a range of 10.2V to 13.8V DC, allowing for precise adaptation to the load requirements.

This model stands out for its typical efficiency of 86% and no-load power consumption of less than 0.2W, promoting energy efficiency. It incorporates reinforced 4000V AC isolation between input and output, along with low noise and 120mVp-p ripple, ensuring a stable and high-quality power supply.

The LRS-35-12 can operate in a temperature range of -30ºC to +70ºC, including drift curves for use in demanding conditions, even at altitudes above 5000 meters (see technical data sheet).

Its compact dimensions of 99 x 82 x 30 mm facilitate its integration into applications where space is limited. Furthermore, it can be installed on a plate, wall, or DIN rail using the KDIN accessory.

It complies with EN55032 Class B regulations without the need for additional components and with the EN62368-1 safety standard, making it suitable also for coffee machines, household appliances and residential applications.

This model comes with a 3-year warranty and international certifications CE, TÜV, BSMI, EAC, BIS, KCC, RCM, CCC, UKCA and UL.
