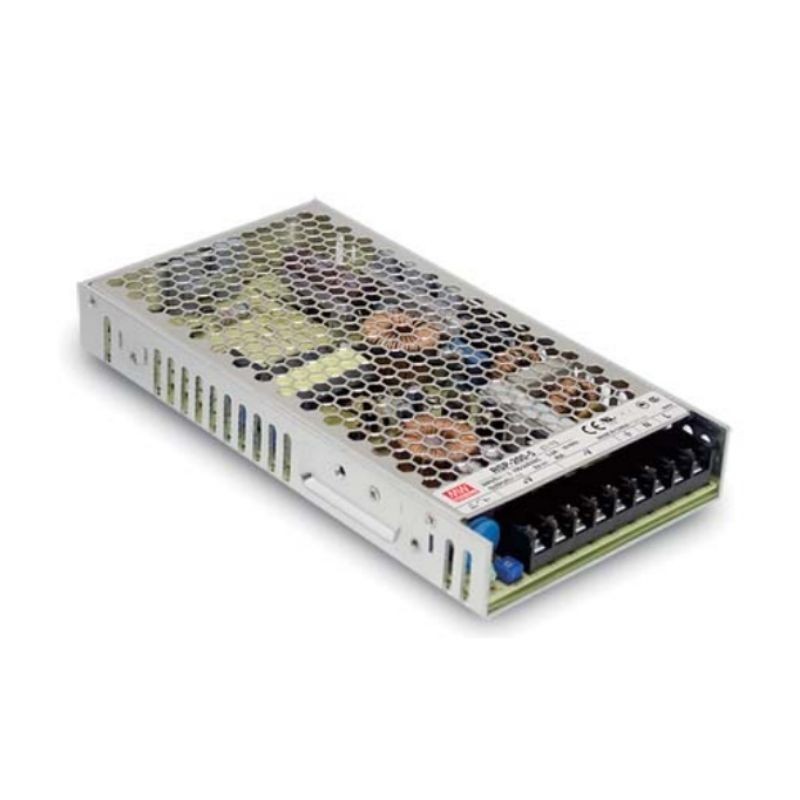

MEANWELL RSP200 12V IP20 POWER SUPPLY

The MEAN WELL RSP-200-12 is a low-profile (40.5 mm) switching power supply designed for industrial applications requiring high power and reliability in a compact form factor. Its grid-frame design optimizes heat dissipation, facilitating integration into space-constrained systems.

It operates with a universal input range of 88 to 264V AC at 47-63Hz, providing a 12V DC output with a maximum current of 16.7A. The output voltage is adjustable via potentiometer between 10V and 13.2V DC, allowing it to be adapted to the load's needs.

It features an active power factor correction (PFC) of >0.95, ensuring greater energy efficiency and reducing distortions in the electrical grid. Its typical efficiency is 89%, ensuring optimal performance.

The RSP-200-12 model features reinforced 3000V AC insulation between input and output, and a low noise level and ripple of 150mVp-p, providing a stable, high-quality power supply. Its operating temperature range is from -30°C to +70°C, allowing for use in extreme environmental conditions.

Its dimensions are 230 x 127 x 40.5 mm, making it easy to integrate into low-profile applications. It also includes a remote on/off function and a power indicator LED, providing visual control and monitoring of the power supply's status.

The RSP series is ideal for industrial applications, automation, telecommunications, LED displays and high-performance electronic equipment, where a powerful, efficient and compact power supply is required.

This model comes with a 3-year warranty and international certifications such as CE, TUV, EAC, RCM, UKCA, CCC, BSMI, and UL.
