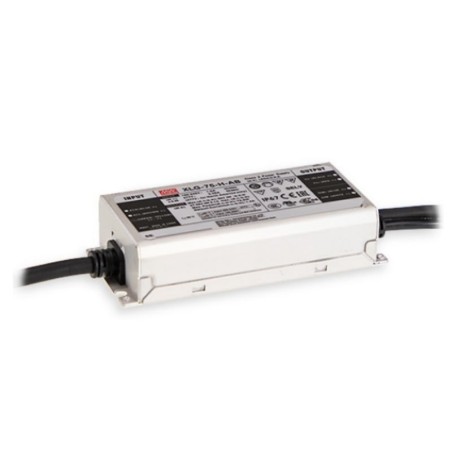

MEANWELL XLG75 75W 12V IP65 POWER SUPPLY

The MEAN WELL XLG-75-12 power supply is a versatile, high-efficiency solution designed for powering LED strips and low- to medium-power lighting systems. Its weatherproof metal housing with IP67 protection makes it ideal for outdoor applications, industrial environments, and demanding environmental conditions.

It operates with a wide input range of 100 to 305V AC at 47-63Hz, providing an adjustable 12V DC output (range 8.4 to 12V DC) with a maximum current of 5A, which can be regulated between 2.5A and 5A using the built-in potentiometer. Its rated power is 60W, with a typical efficiency of 89%, ensuring optimal energy performance.

The XLG-75-12 model incorporates a current adjustment potentiometer to adapt the output to the specific needs of each project, offering greater flexibility. It includes integrated protections against overloads, short circuits, over-temperature, and output overvoltage, guaranteeing the system's safety and durability.

It features reinforced insulation and a power factor correction (PFC) >0.95 at 230V AC at full load, optimizing energy efficiency. This driver is Class I and requires grounding for safe operation.

With compact dimensions of 140 x 63 x 32 mm, it is easily integrated into projects with space limitations. Its operating temperature range spans from -40°C to +90°C (Tc), making it suitable for applications in extreme environmental conditions.

The MEAN WELL XLG series is designed for public, architectural, and outdoor lighting applications, distinguished by its high efficiency, robustness, and ease of adjustment. It also holds HL Class I Division 2 approval for explosive atmospheres in the USA.

This model includes a 5-year warranty and is certified by CE, CCC, PSE, ENEC, EAC, BIS, KCC, RCM, UKCA, NOM, and UL.
