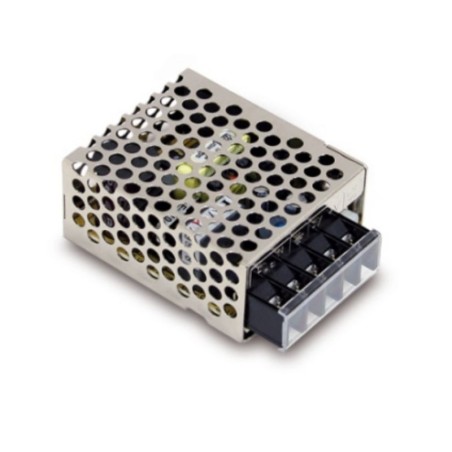

MEANWELL 15W 24V IP20 POWER SUPPLY

The MEAN WELL RS-15-24 is a 15W switching power supply designed for industrial applications requiring a compact, reliable, and efficient solution. Its grid-frame design promotes heat dissipation, facilitating its integration into various types of installations.

It operates with a universal input range of 85 to 264V AC at 47-63Hz, providing a 24V DC output with a maximum current of 0.62A. The output voltage is adjustable via potentiometer within a range of 22V to 27.6V DC, allowing it to be adapted to the load's needs.

Its typical efficiency is 82%, with a low no-load power consumption of less than 0.5W, contributing to the system's energy efficiency. It features reinforced 3000V AC insulation between input and output and a low noise level and ripple of 200mVp-p, ensuring a stable and reliable power supply.

The operating temperature range is from -20°C to +70°C, with drift curves indicated in the data sheet to maintain performance under extreme conditions. Its compact dimensions of 62.5 x 51 x 28 mm allow mounting on a panel, wall, or DIN rail using the KDIN accessory.

The MEAN WELL RS series is specifically designed for industrial, automation, signaling, and electronic equipment applications, offering a robust, compact, and easy-to-integrate power supply.

The RS-15-24 model includes a 3-year warranty and has international certifications such as CE, BIS, BSMI, RCM, EAC, CCC, TUV, UKCA, and UL.
