MEANWELL 25W 24V IP20 POWER SUPPLY

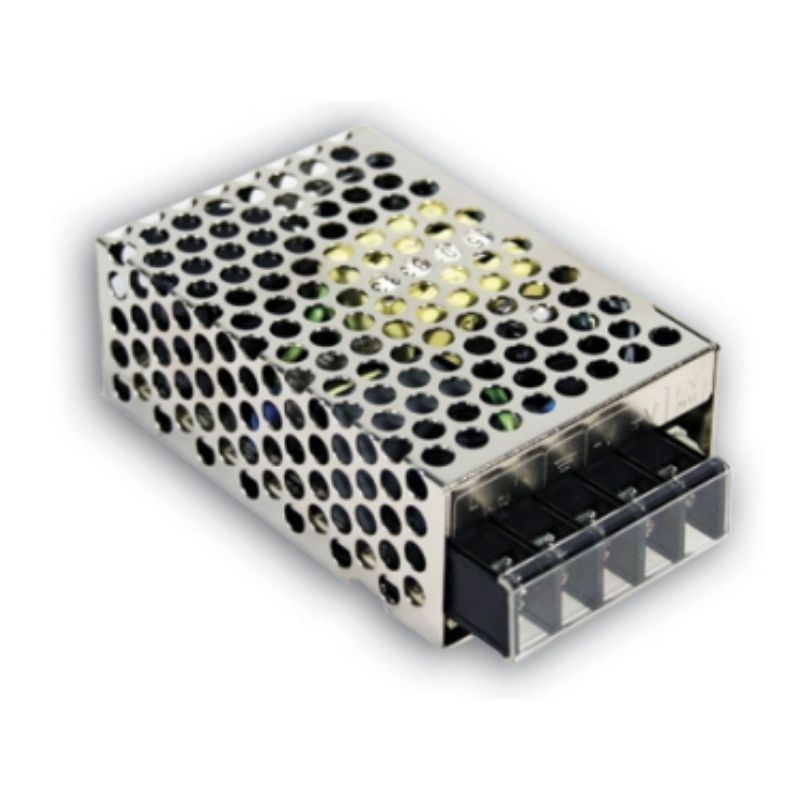

The MEAN WELL RS-25-24 is a 26.4W switched-mode power supply designed for industrial applications requiring a reliable, efficient, and compact solution. Its grid-type enclosure allows for optimal heat dissipation and facilitates integration into various configurations.

It accepts a universal input range of 88 to 264V AC at 47-63Hz, providing a 24V DC output with a maximum current of 1.1A. The output voltage is adjustable via potentiometer within a range of 22V to 27.6V DC, offering flexibility to adapt to the load requirements.

It offers a typical efficiency of 86% and a no-load consumption of less than 0.5W, optimizing the system's energy efficiency. It features reinforced 3000V AC isolation between input and output, and a low noise and ripple level of 120mVp-p, ensuring a clean and stable power supply.

The operating temperature range extends from -20°C to +70°C, with detailed drift curves in the datasheet to ensure performance under demanding environmental conditions. Thanks to its compact dimensions of 78 x 51 x 28 mm, it can be mounted on a plate, wall, or DIN rail using the KDIN accessory.

The MEAN WELL RS series is specifically designed for industrial applications, automation, signaling, and electronic equipment, where a robust and easily integrated power supply is required.

This model comes with a 3-year warranty and international certifications CE, BIS, BSMI, RCM, EAC, CCC, TUV, UKCA and UL.
