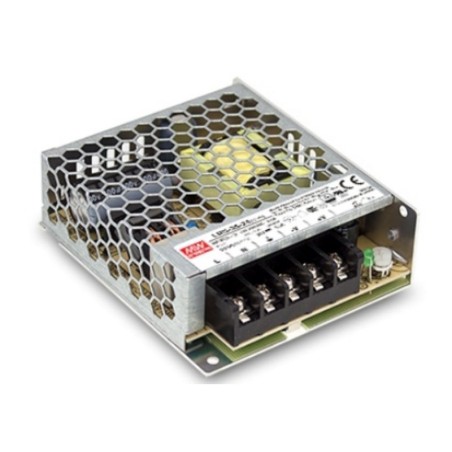

MEANWELL LRS35 35W 24V IP20 POWER SUPPLY

The MEAN WELL LRS-35-24 is a 36W switched-mode power supply designed in a compact, low-profile (1U) form factor, ideal for industrial, automotive, machinery, and appliance applications. Its grid-type housing optimizes heat dissipation, allowing for integration into space-constrained systems.

It operates with a universal input range of 85 to 264V AC at 47-63Hz, providing a 24V DC output with a maximum current of 1.5A. The output voltage is adjustable via a potentiometer between 21.6V and 28.8V DC, adapting to the load requirements.

This model stands out for its high efficiency of 88% and a no-load power consumption of less than 0.2W, optimizing energy efficiency. It incorporates reinforced 4000V AC isolation between input and output, with low noise and ripple levels of 150mVp-p, ensuring a clean and stable power supply.

Its operating temperature range spans from -30°C to +70°C, allowing its use in demanding environmental conditions. Furthermore, it is designed to operate at altitudes above 5000 meters (see technical data sheet for drift curve).

Its compact dimensions of 99 x 82 x 30 mm facilitate installation in space-constrained systems. It allows for mounting on a plate, wall, or DIN rail using the KDIN accessory, providing integration flexibility.

The LRS-35-24 complies with EN55032 Class B regulations without the need for additional components and with EN62368-1, suitable for coffee machines, household appliances and residential applications.

It includes a 3-year warranty and has international certifications CE, TÜV, BSMI, EAC, BIS, KCC, RCM, CCC, UKCA and UL.
