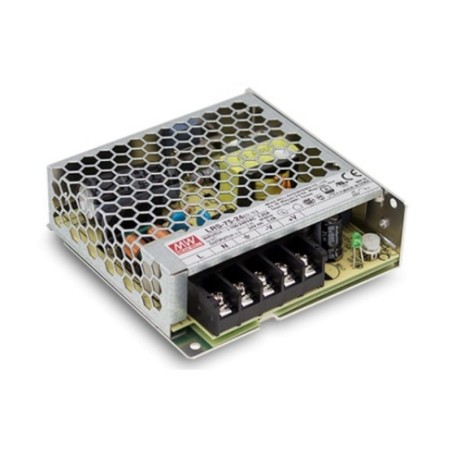

MEANWELL LRS75 75W 24V IP20 POWER SUPPLY

The MEAN WELL LRS-75-24 is a 76.8W switched-mode power supply designed in a compact, low-profile (1U) form factor, ideal for industrial, automotive, machinery, and appliance applications. Its grid-type case design promotes excellent heat dissipation, ensuring reliability in space-constrained installations.

It operates with a universal input range of 85 to 264V AC at 47-63Hz, providing a 24V DC output with a maximum current of 3.2A. The output voltage is adjustable via a potentiometer within a range of 21.6V to 28.8V DC, adapting to the specific needs of the load.

The LRS-75-24 offers a typical efficiency of 90% and maintains a no-load power consumption of less than 0.3W, making it highly energy efficient. It features reinforced 4000V AC isolation between input and output and low noise and ripple of 150mVp-p, ensuring a stable and high-quality power supply.

It operates in a temperature range of -30°C to +70°C and is suitable for use at altitudes above 5000 meters (see drift curves in the technical data sheet). With compact dimensions of 99 x 97 x 30 mm, it is ideal for projects with space limitations.

Installation can be done on a plate, wall or DIN rail using the KDIN accessory, providing flexibility in integration.

It complies with EN55032 Class B without the need for additional components and EN62368-1, making it suitable for industrial, commercial and residential applications, such as coffee machines, household appliances, automation and electronic equipment.

The LRS-75-24 model has a 3-year warranty and international certifications CE, TÜV, BSMI, EAC, BIS, KCC, RCM, CCC, UKCA and UL.
