MEANWELL RSP200 24V IP20 POWER SUPPLY

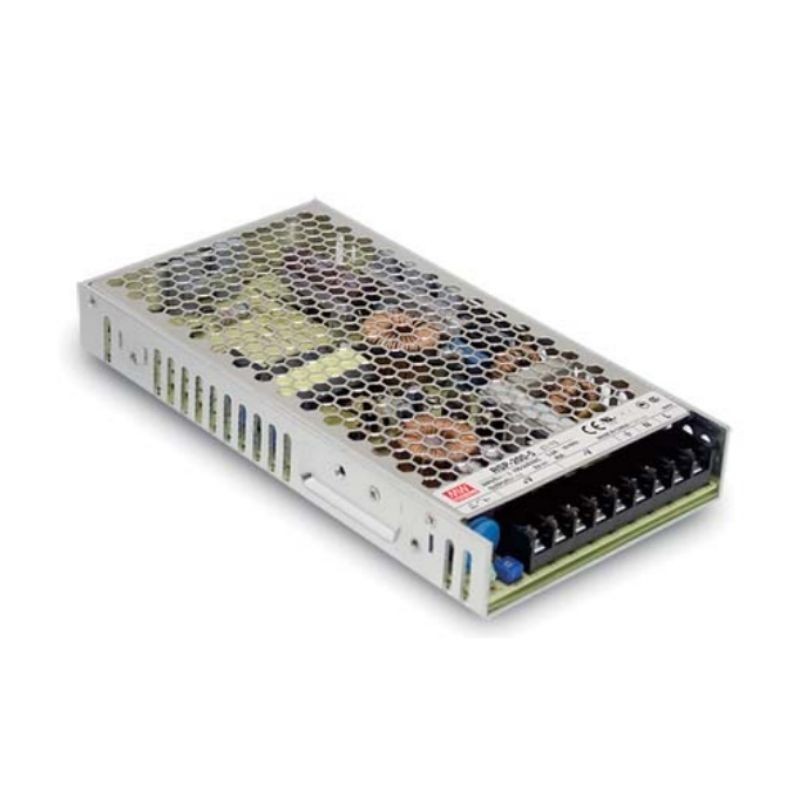

The MEAN WELL RSP-200-24 is a low-profile (40.5 mm) switching power supply specifically designed for industrial applications requiring high power and reliability in a compact form factor. Its grid-frame construction facilitates excellent heat dissipation, optimizing its integration into space-constrained systems.

It operates with a universal input range of 88 to 264V AC at 47-63Hz, providing a 24V DC output with a maximum current of 8.4A. The output voltage is potentiometer-adjustable between 20V and 26.4V DC, allowing it to be adapted to the specific needs of each application.

It features an active power factor correction (PFC) of >0.95, ensuring energy efficiency and reducing distortions in the electrical grid. Its typical efficiency reaches 89.5%, ensuring optimal energy utilization.

The RSP-200-24 model features reinforced 3000V AC insulation between input and output and a low noise level and ripple of 150mVp-p, providing a clean and stable power supply. Its operating temperature range extends from -30°C to +70°C, allowing for use in industrial environments and extreme conditions.

Its dimensions of 230 x 127 x 40.5 mm allow for integration into equipment with height limitations. The RSP series includes advanced features such as remote on/off and a power indicator LED, facilitating system control and monitoring.

This series is specifically designed for industrial applications, automation, LED displays, telecommunications, and high-performance electronic equipment.

The RSP-200-24 model includes a 3-year warranty and has international certifications such as CE, TUV, EAC, RCM, UKCA, CCC, BSMI, and UL.
