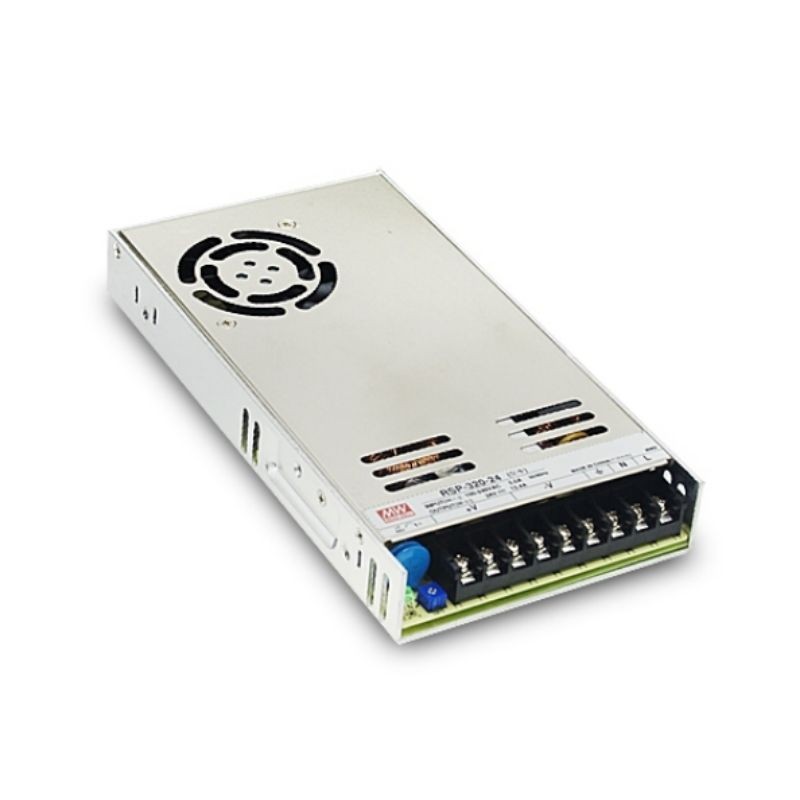

MEANWELL RSP320 24V IP20 POWER SUPPLY

The MEAN WELL RSP-320-24 is a low-profile (30 mm) switched-mode power supply designed for industrial applications requiring high power in confined spaces. Its grid-type case design optimizes heat dissipation, ensuring reliable performance even in demanding environments.

It operates with a universal input range of 88 to 264V AC at 47-63Hz, supplying a 24V DC output with a maximum current of 13.4A. The output voltage is adjustable via potentiometer between 20V and 26.4V DC, offering flexibility to adapt to the load specifications.

It features an active power factor correction (PFC) >0.95, ensuring greater efficiency and reduced distortion in the electrical grid. Its typical efficiency is 89%, optimizing energy use in high-performance applications.

The RSP-320-24 model features reinforced 3000V AC isolation between input and output and a low noise and ripple level of 150mVp-p, ensuring a stable, high-quality power supply. Its operating temperature range is -30°C to +70°C, allowing for use in extreme environmental conditions.

Its dimensions of 215 x 115 x 30 mm allow for easy integration into low-profile (1U) systems. Furthermore, the RSP series includes advanced features such as remote on/off and a power indicator LED, facilitating control and monitoring in industrial applications.

This model is ideal for industrial automation, telecommunications, LED displays, and high-performance electronic equipment.

It includes a 3-year warranty and has international certifications CE, TUV, EAC, RCM, UKCA, CCC, BSMI and UL.
