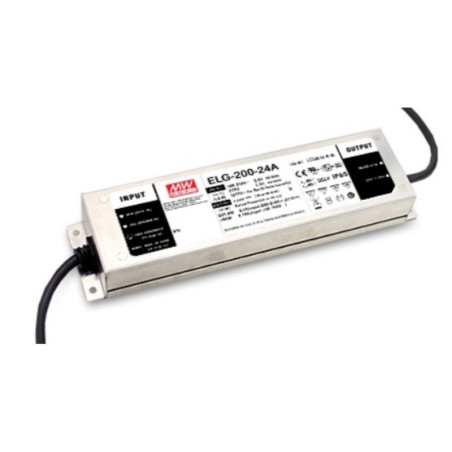

MEANWELL ELG200 200W 24V IP65 POWER SUPPLY

The MEAN WELL ELG-200-24 power supply is a high-performance solution designed to power LED strips, LED bulbs, and high-power lighting systems in demanding environments. Its weatherproof metal housing with IP67 protection allows for use in outdoor, industrial, and extreme environmental applications.

It accepts an input range of 100 to 305V AC at 47-63Hz, supplying a 24V DC output with a maximum current of 8.4A, automatically adapting to the load demand. Its rated power reaches 201.6W, with a typical efficiency of 92%, guaranteeing exceptional energy performance and stable operation.

The ELG-200-24 model features reinforced 3750V AC isolation between input and output, and maintains a low noise and ripple level of 200mVp-p. It incorporates a power factor correction (PFC) >0.95 at 230V AC under full load, and a no-load consumption of less than 0.5W, optimizing energy efficiency even when idle.

Measuring 244 x 71 x 37.5 mm, it is easily integrated into large-scale professional installations. Furthermore, its operating temperature range of -40°C to +90°C (Tc) makes it suitable for extreme conditions.

The MEAN WELL ELG series is specifically designed for public, architectural, and outdoor lighting applications, distinguished by its high efficiency, robustness, and reliability. This model also holds HL Class I Division 2 approval for explosive atmospheres in the USA.

It includes a 5-year warranty and is certified by CE, BIS, CCC, RCM, KCC, ENEC, EAC, UKCA and UL.
