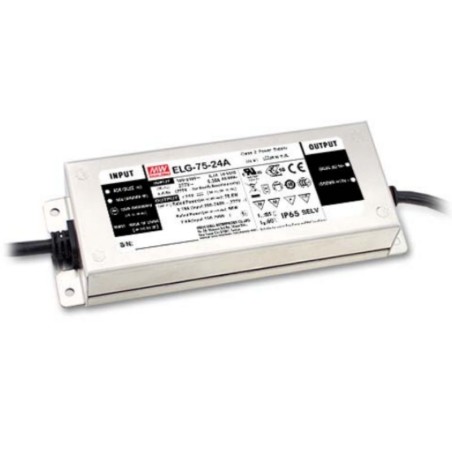

MEANWELL ELG75 75W 24V IP65 POWER SUPPLY

The MEAN WELL ELG-75-24 power supply is a high-performance solution designed to power LED strips, LED bulbs, and medium-power lighting systems in demanding environments. Its weatherproof metal housing with IP67 protection allows for use in outdoor, industrial, and harsh environmental conditions.

It accepts an input range of 100 to 305V AC at 47-63Hz, delivering a 24V DC output with a maximum current of 3.15A, automatically adapting to the load demand. Its rated power is 75.6W, with a typical efficiency of 88%, ensuring optimal energy performance and reliable operation.

The ELG-75-24 model features reinforced 3750V AC isolation between input and output, and maintains a low noise and ripple level of 200mVp-p. It has a power factor correction (PFC) >0.95 at 230V AC under full load, and a no-load consumption of less than 0.5W, optimizing efficiency at all times.

Measuring 180 x 63 x 35.5 mm, it integrates easily into professional projects where space is limited. Furthermore, its operating temperature range spans from -40°C to +85°C (Tc), making it suitable for even the most extreme conditions.

The MEAN WELL ELG series is specifically designed for public, architectural, and outdoor lighting applications, distinguished by its high efficiency, robustness, and reliability. This model is approved for use in hazardous areas (HL Class I Division 2 in the USA).

It includes a 5-year warranty and has CE, BIS, CCC, RCM, KCC, ENEC, EAC, UKCA and UL certifications.
