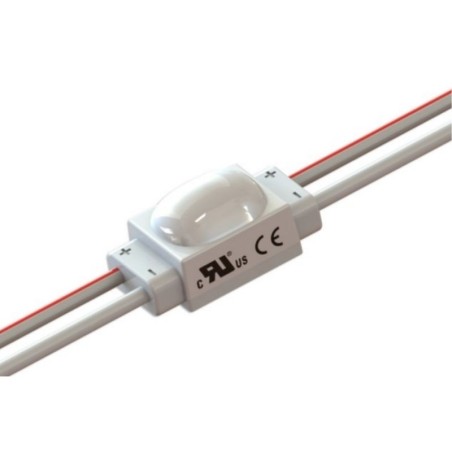

MINIPLUS LED MODULE 1SMD 0.36W 170º 12V

The MINI PLUS LED module is a compact and powerful solution, specifically designed to illuminate confined spaces with uniform light distribution. Thanks to its oval optics and miniaturized design, it can be easily installed in small lettering, shallow light boxes, and signage projects that require precision without sacrificing intensity. Available in cool white (6500K) and warm white (3000K).

Main features:

• Luminous flux: 41 lm per module
• Consumption: 0.36W per module, 12V DC
• Aperture angle: 170° x 130° for wide and homogeneous dispersion
• IP67 protection: Suitable for outdoor and indoor use

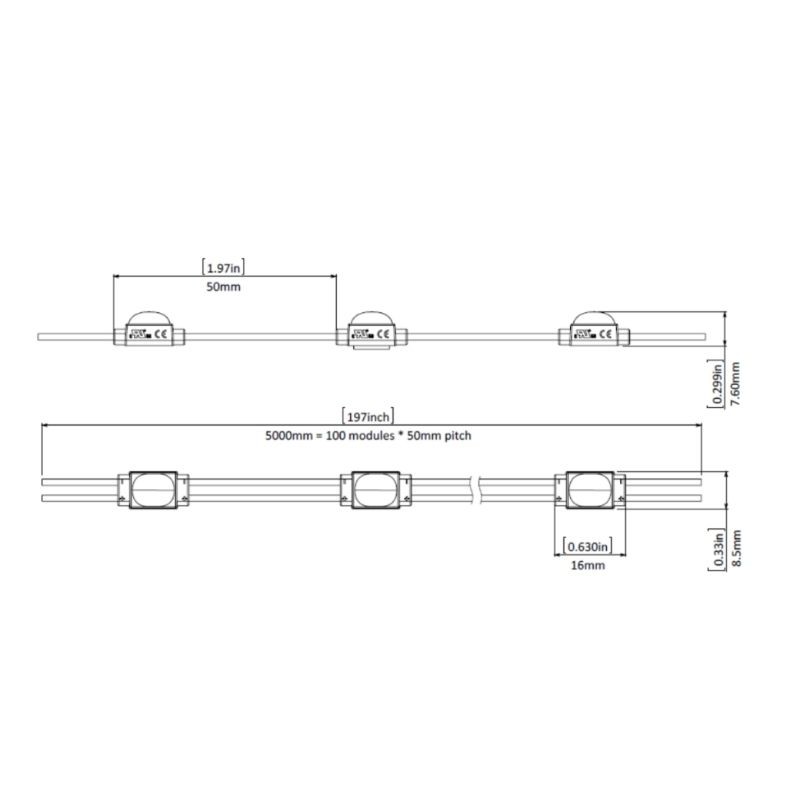

• Compact dimensions: 16mm x 8.5mm x 8mm
• Long lifespan: 50,000 hours and 5-year warranty
• Up to 100 modules per string, with low voltage drop

The MINI PLUS module is ideal for backlighting small, three-dimensional letters, signage with complex shapes, and light boxes with depths between 25 and 80 mm. Its discreet design makes it the perfect choice for projects where space is limited but professional lighting is desired, whether on facades, shop windows, commercial signs, or decorative environments requiring a welcoming and elegant atmosphere.
