PERIMETER RIGID BAR 27W 18SMD IP20 12V

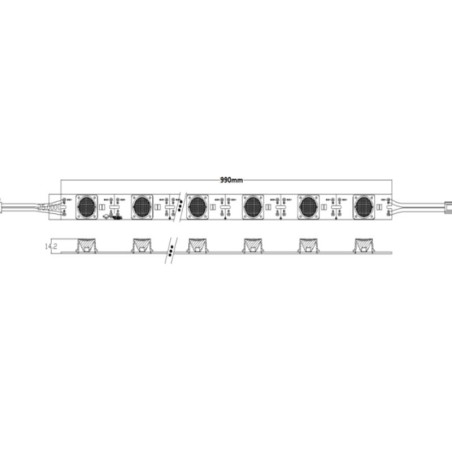

The NOVABR18BF LED strip from VISCOM LEDS AND FRAMES is designed for edge lighting in light boxes with a depth of 100 to 300 mm.

Main features

• Input voltage: 12V DC
• Power: 27W per strip (990 mm)
• Luminous flux: 2700 lm
• Color temperature: 6500K (Cool White)
• Aperture angle: 15° × 45° (lateral concentrated optics)
• Color rendering index: Ra > 70
• Protection: IP20 (indoor use)
• Operating temperature: -25°C to +60°C
• Lifespan: 50,000 hours (L70B50)
• Regulation: PWM compatible
• Recommended installation: Parallel connection, up to 3 strips per source

Ideal for backlighting single- or double-sided lightboxes, the NOVABR18BF strip is perfectly suited for signage and corporate image systems requiring powerful, continuous, spot-free lighting. Its concentrated optics allow for precise distribution, optimizing light output even in demanding installations.

";
