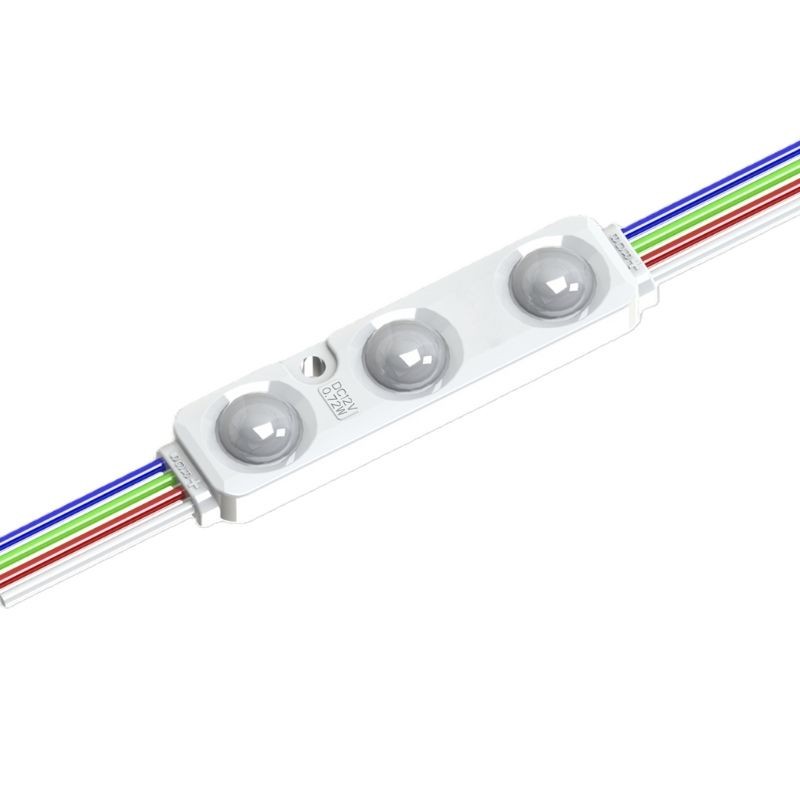

FRONT LED MODULE 2SMD 0.72W RGB 12V 160º

The VISCOM LEDS AND FRAMES NOVARGB RGB LED module is an efficient and versatile solution for backlighting applications in signs, lettering, and light boxes. Thanks to its advanced bat-wing optics and 160° beam angle, it provides homogeneous lighting in projects requiring color, intensity, and durability, both indoors and outdoors.

Main Features:

• RGB lighting: Red (620–625 nm), green (520–530 nm) and blue (460–470 nm).
• 12V DC power supply: Stable operation and low energy consumption.
• Bat-wing optics: Special lens that optimizes light dispersion.
• Luminous flux per module: Red 8 lm | Green 16 lm | Blue 5 lm | Total 29 lm.
• Opening angle: 160°, for uniform illumination without marked shadows.
• Lifespan: 50,000 hours (L70B50), with long-term consistent performance.
• IP67 Protection: Resistant to water, dust and demanding outdoor conditions.

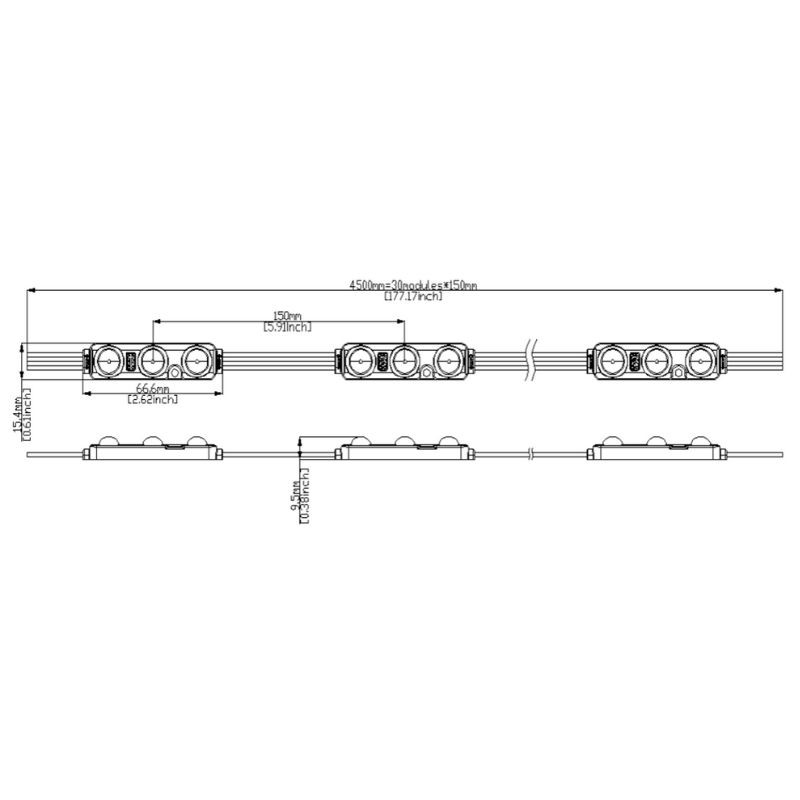

• Daisy-chained modules: Up to 30 modules connected per installation.
• Intensity control: Compatible with PWM systems.
• Easy installation: Flexible and cuttable wiring between modules.

This module is specifically designed to illuminate deep lettering, three-dimensional letters, and light boxes with RGB effects. It is also ideal for commercial facades requiring a prominent visual presence, dynamic signage, and outdoor lighting projects requiring environmental resistance and high visual impact thanks to its intensity and color flexibility.
