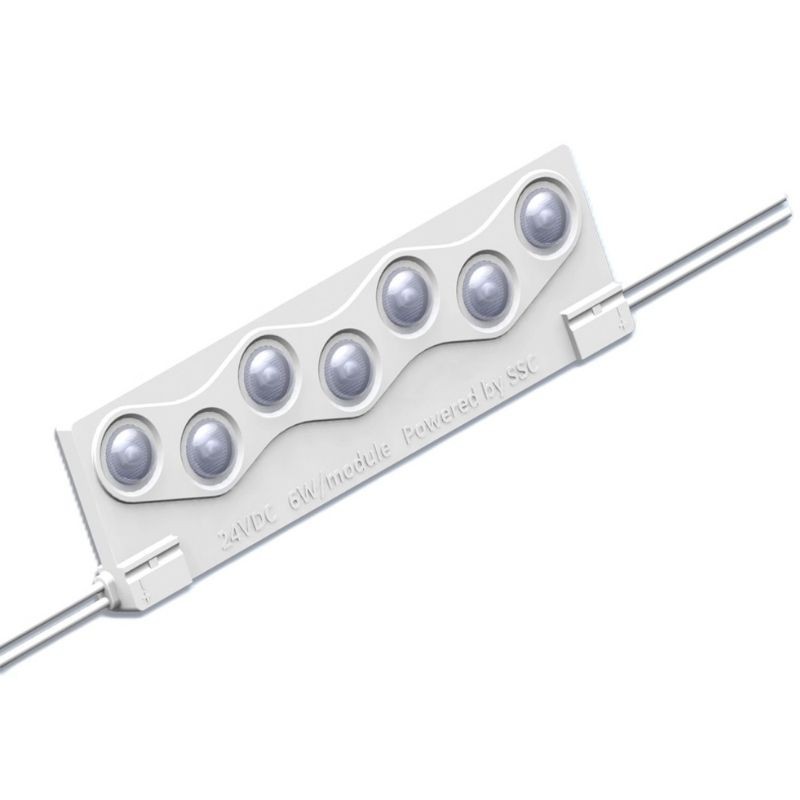

High-efficiency double-sided LED module 6W

The NOVA P6HT Cool White module is designed to deliver powerful, uniform and efficient backlighting in large-format applications.

Main features:

• Color temperature: 6500K (Cool White)
• Power: 6W per module, 24V DC
• Luminous flux: 930 lm per module
• Luminous efficiency: 155 lm/W
• Opening angle: 170°, ultra-wide coverage
• IP67 Protection: Resistant to water, dust and extreme conditions
• Dimming Technology: Compatible with PWM dimmers
• Long lifespan: Up to 70,000 hours (L70B50)
• Individual cut between modules

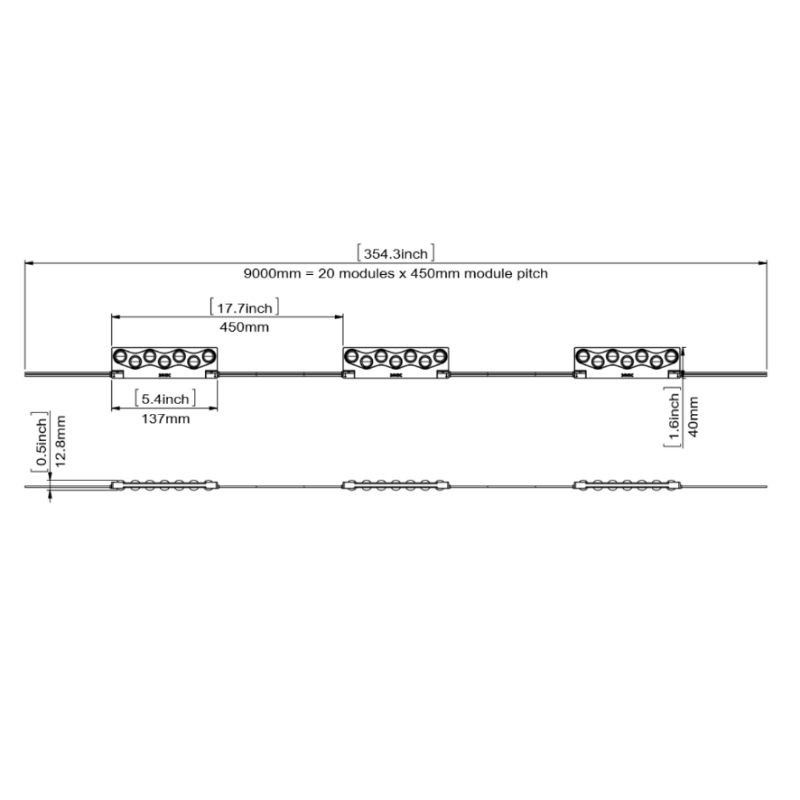

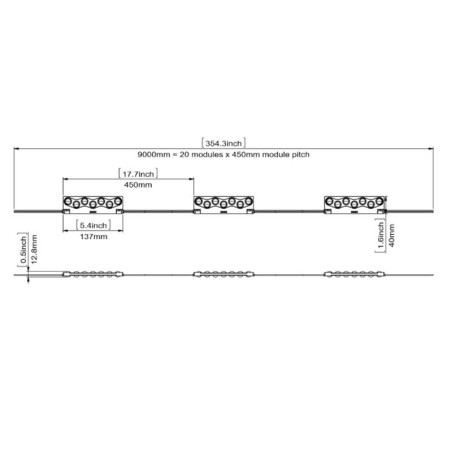

• Maximum chain: Up to 20 modules per series (max. 120W)
• Warranty: 7 years

Designed specifically for backlighting double-panel lightboxes with depths between 120 and 300 mm, the NOVA P6HT is the ideal solution for large signage, logos, illuminated displays, and advertising projects requiring maximum visibility and energy efficiency. Suitable for both indoor and outdoor use, it guarantees professional, clear, spot-free illumination.
