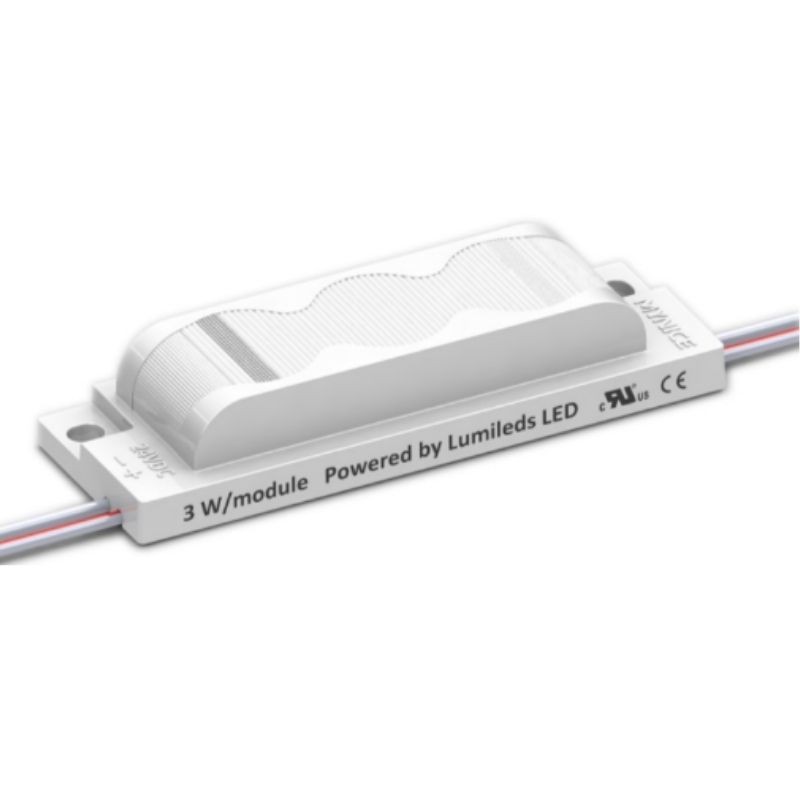

HIGH EFFICIENCY PERIMETER LED MODULE 3W 24V

The NOVA P3HT module is designed to offer a powerful, efficient, and durable solution for side lighting large-format lightboxes. Thanks to its curved lens optics and 11° × 40° beam angle, it provides precise, uniform light projection without dark areas, even at long installation distances.

Main features:

• Color Temperature: Available from 3000K to 7000K (warm white to cool white)
• Power: 3W per module, 24V DC
• Luminous flux: 390 lm per module
• Luminous efficiency: 130 lm/W
• Side optics: 11° × 40° aperture lens for precise projection
• IP68 Protection: Fully sealed, resistant to water, dust and external agents
• PWM dimmable: Compatible with dimmers for intensity control
• Long lifespan: Up to 70,000 hours (L70B50)

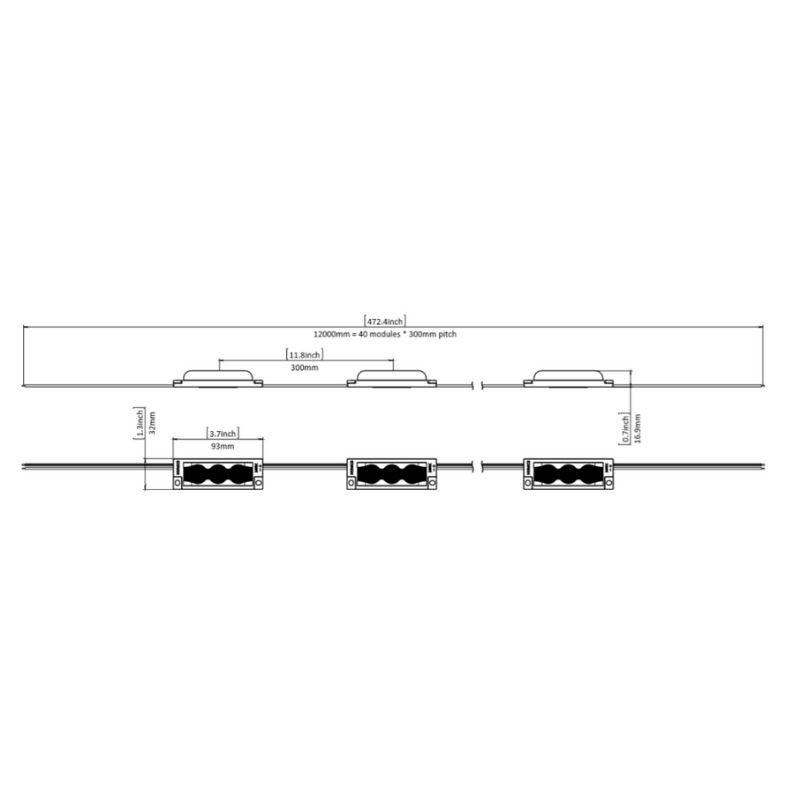

• Maximum chain: Up to 40 modules connected in series (max. 120W)
• Warranty: 7 years

Particularly suitable for side lighting in light boxes measuring 2 to 4 meters in length, the NOVA P3HT module guarantees continuous, shadow-free illumination for large-format signage, advertising displays, and logos. Its extreme durability makes it the ideal solution for both indoor and outdoor installations requiring maximum durability, visibility, and energy efficiency.
