CASAMBI BLUETOOTH DIMMABLE TRIAC

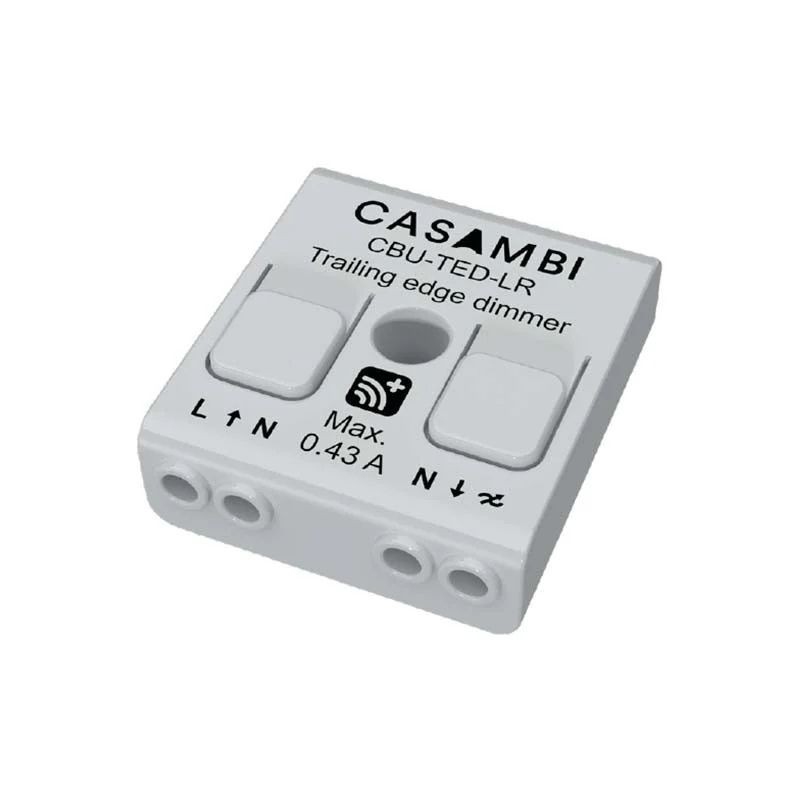

The CBU-TED-LR is a long-range trailing edge TRIAC dimmer designed to control dimmable luminaires using Bluetooth Low Energy technology through the CASAMBI system. With a compact form factor (40.4 × 36.2 × 14 mm) and IP20 protection, it can be easily installed in wall mechanisms, flush-mounted boxes, or inside luminaires. It operates with an input range of 85-240 Vac at 50-60 Hz and offers a regulated output of up to 100 W at 230 Vac (see data sheet according to load type), with a maximum starting peak of 10 A and no-load consumption of less than 0.3 W. The communication range is up to 50 m indoors and 200 m outdoors, allowing its use in extensive installations thanks to the CASAMBI mesh network, which guarantees robustness, operational continuity, and cloud configuration with no single points of failure. Control can be achieved via the CASAMBI app for iOS and Android or via conventional switches (Smart Switching feature). It is compatible with dimmable LED lamps, incandescent lamps, or any load suitable for TRIAC dimming. It operates between -20°C and +45°C, with a maximum Tc of 75°C, and is CE and RoHS certified. Manufactured by CASAMBI, it comes with a 3-year warranty and allows you to create smart, scalable, and intuitive lighting systems without additional wiring.
