CASAMBI ON/OFF PRESENCE SENSOR AND SURFACE LIGHTING

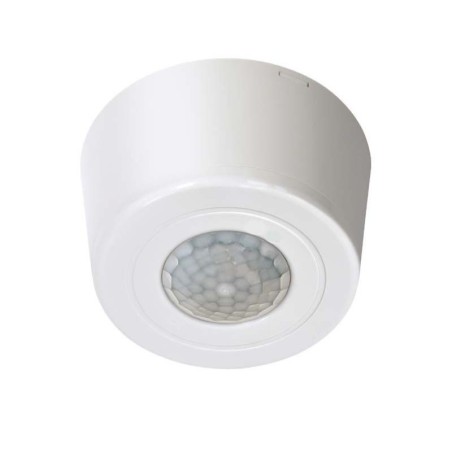

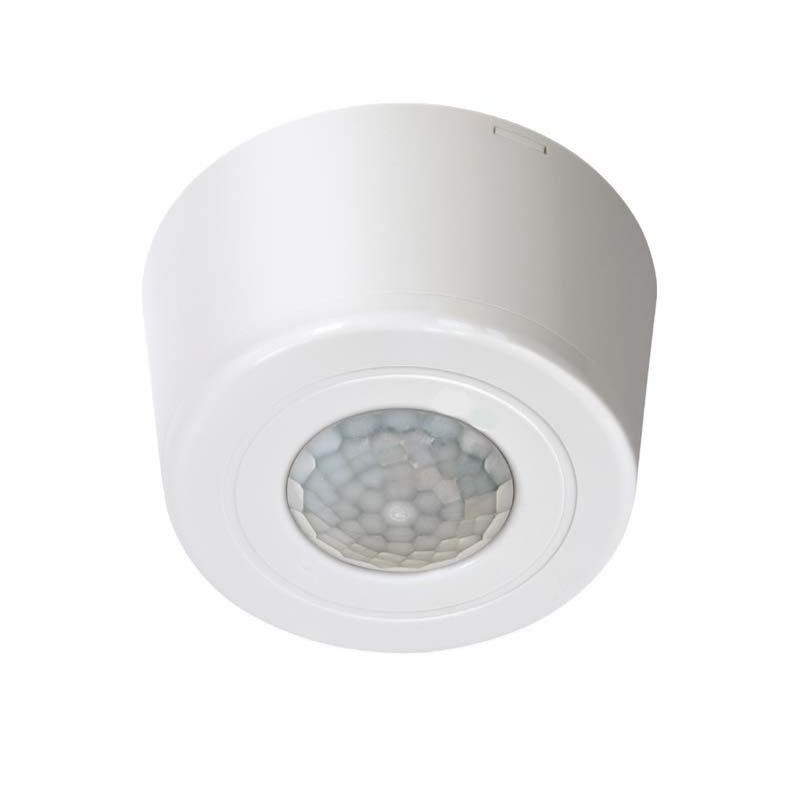

The CBU-CERSW sensor is a presence and illuminance detector compatible with the CASAMBI system, with ON/OFF operation and a recessed ceiling format. Designed in white, it has a 90° detection angle and allows installation at heights between 2.4 and 5 meters, with a detection range of up to 7 meters in diameter. It operates with 100-240Vac at 50-60Hz power supply, includes a surface-mounted PIR sensor and a 10A relay for fluorescent and halogen loads, 6A for LED or electronic transformers, and up to 1A for fans. It offers ambient light detection between 5 and 2000 lux and features IP40 front protection, Class II (without grounding), and resistance to extreme temperatures from -25°C to +75°C, with relative humidity between 0% and 80% non-condensing. Its compact design (91 × 49 mm) and CASAMBI compatibility make it an efficient solution for lighting automation. Manufactured by DANLERS, with CE, UKCA, and RoHS certifications and a 5-year warranty.
