DMX OR DALI MULTI-CHANNEL DIMMABLE CONTROL

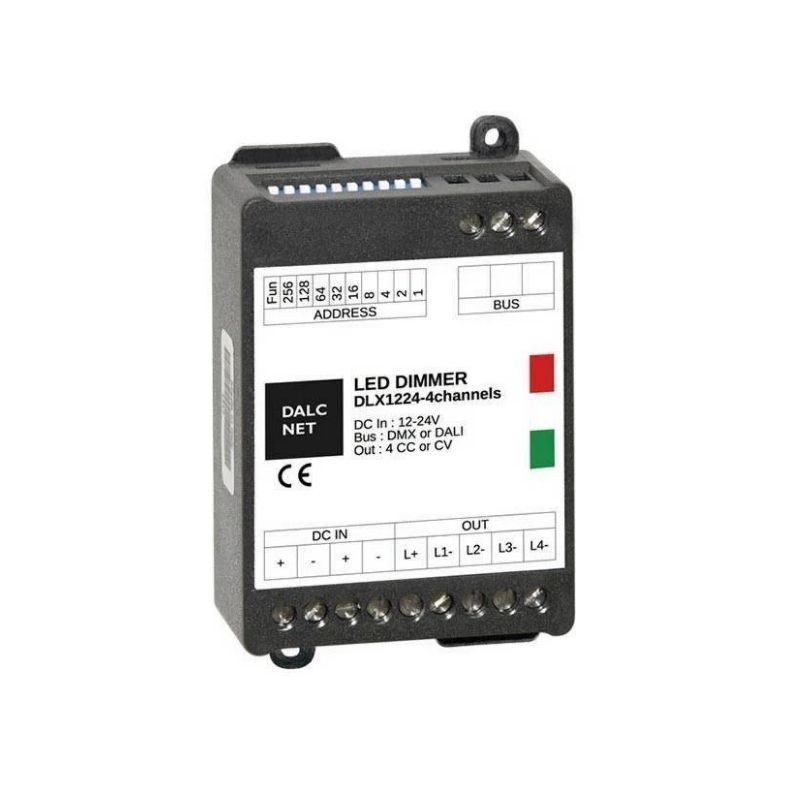

The DLX1224-4CV-DMX is a compact and versatile controller specifically designed to power RGB or RGBW LED strips at constant voltage, with an input of 10.8 to 26.4V DC and 4 outputs of up to 5A per channel (maximum total 10A). It offers a maximum power of 120W at 12V DC and 240W at 24V DC, with a high typical efficiency of 95%. Its operation can be configured either via DMX + RDM protocol or in standalone mode, with sequences adjustable via dip-switch. It supports both manual and bus DMX addressing, and provides smooth on/off and an optimized dimming curve for greater visual comfort. Its compact size (88 × 54 × 26 mm) and IP20 protection allow for discreet installation in confined spaces. This model is especially suitable for constant voltage LED strips and is not compatible with constant current luminaires. With an operating range of -10 to +40°C, a 2-year warranty and manufactured by DALCNET, it is a professional and reliable solution for DMX-controlled LED lighting installations.
