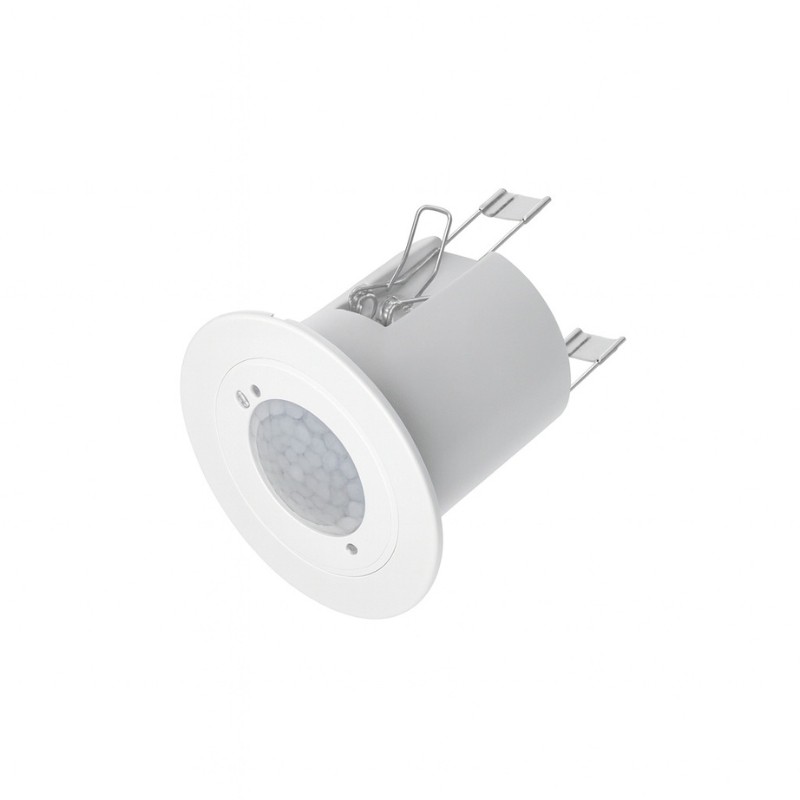

PRESENCE AND LIGHTING SENSOR WITH RELAY OUTPUT FOR CASAMBI

The CBU-CEFL-OLF is an occupancy and illuminance sensor designed for integration into CASAMBI systems via Bluetooth communication. With a recessed ceiling format (requiring a 73-75 mm hole and a minimum height of 78 mm), it detects motion and ambient light levels to activate luminaires, scenes, or circadian sequences configurable from the CASAMBI app. It operates with a 100-240 Vac input at 47-53 Hz and has a 120° detection angle, with an installation range of 2.4 to 5 meters high and a detection diameter of up to 7 meters. It measures 79 x 85 x 85 mm, weighs 95 g, and has IP20 protection. Its luminosity sensor covers between 5 and 2000 lux, with operation in environments from -20°C to +40°C and up to 80% relative humidity without condensation. It features a terminal for cables from 0.5 to 2.5 mm² and a maximum tightening torque of 0.4 Nm. It allows wireless control of up to 250 devices via a network, without the need for gateways, with advanced features such as scenes, animations, schedules, sunlight simulations, and circadian timing. Configurations are encrypted and stored in the cloud, with layered access and the ability to control devices by tapping on plans or images in the app. Manufactured by DANLERS, it has a 5-year warranty and is CE, UKCA, and RoHS certified.
