1 WAY DIMMER 5V12V 8A

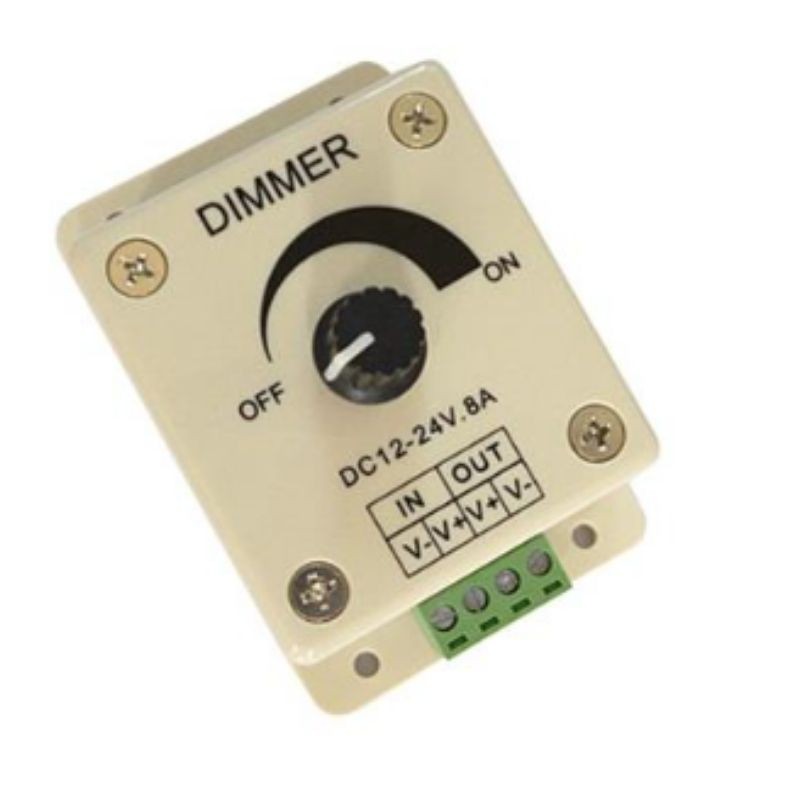

The SC-DIM-MAN8 is a single-channel LED dimmer that allows continuous brightness adjustment via a rotary knob control. Designed for monochromatic lighting applications, this device allows light intensity to be progressively adapted to the user's needs, offering smooth and precise dimming. It operates with an input voltage of 12V to 24V DC, supporting a maximum output current of 8A, allowing it to control power outputs of up to 96W at 12V and 192W at 24V. Its standby power consumption is less than 1W, ensuring high energy efficiency. The dimmer features male and female screw-type input and output connectors, facilitating safe and reliable installation. Its compact housing measures 89x59x35 mm, allowing it to be integrated into multiple installation environments. Control is intuitive: turning the knob to the right increases the intensity until reaching maximum brightness, while turning it to the left progressively decreases the intensity until the light is turned off. This simple and functional design makes it an ideal solution for decorative lighting projects, signage, or residential and commercial applications where manual brightness control is required. It is important to observe the correct polarity when connecting and avoid overloading, as it only accepts 12V DC power, ensuring safe and long-lasting operation.
