RF DIMMER 4 ZONE PANEL CONTROLLER

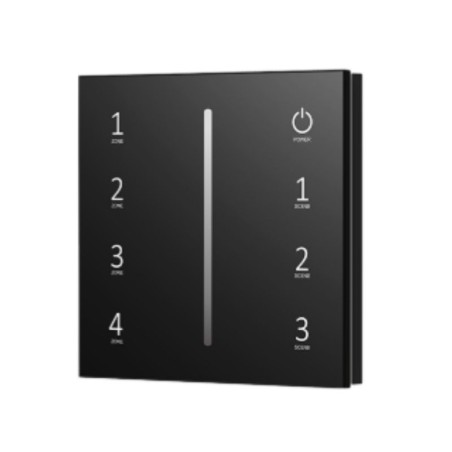

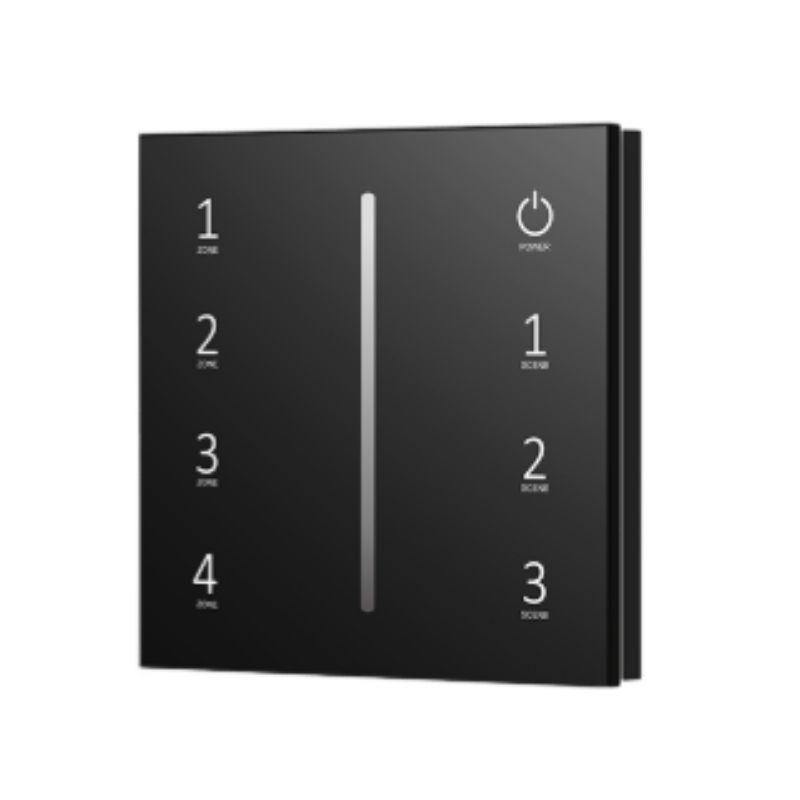

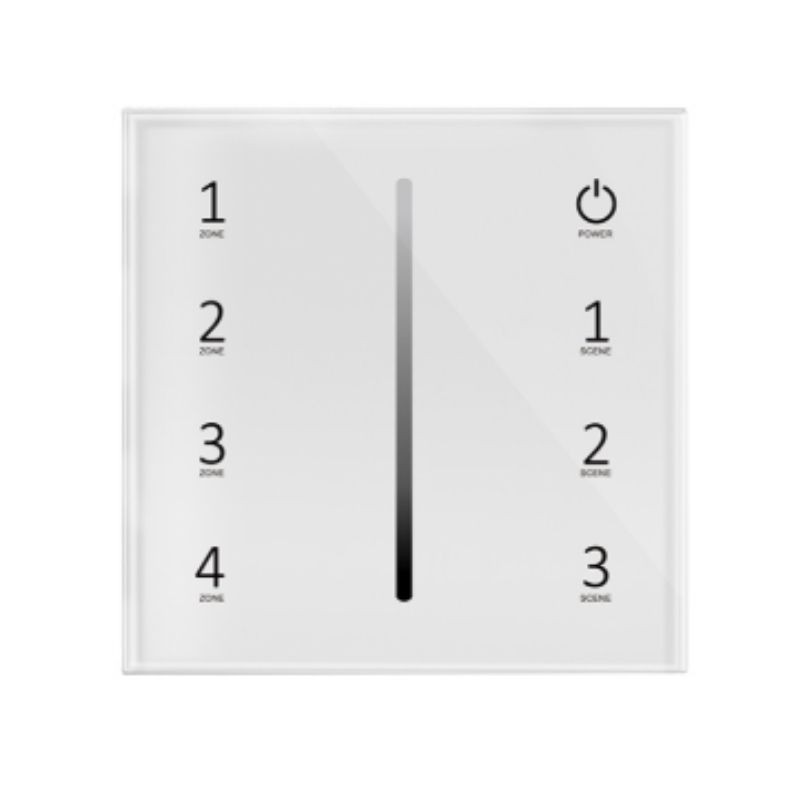

The SC-RF-PANEL-DIM is a wall-mounted touch panel for single-color LED lighting control, capable of managing up to 4 independent zones. It functions as a DMX512 master with a signal output compatible with any standard DMX decoder, or as a 2.4GHz RF remote, allowing remote control of multiple RF controllers in each zone. It features an ultra-sensitive touch glass interface with a slider bar for precise brightness adjustment and keys with LED indicators. Its modern design is available in a white or black panel and operates directly from 100–240V AC without the need for an additional power supply. It supports 256 dimming levels, a dimming range of 0 to 100%, and a wireless range of up to 10 meters. It also allows for storing and recalling custom scenes and installs easily in standard 86 mm boxes.
