MEANWELL 100W 12V IP20 POWER SUPPLY

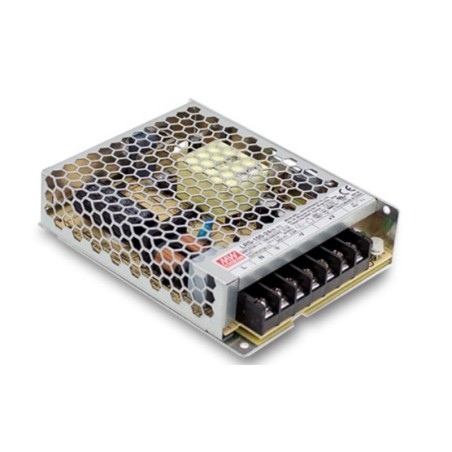

The MEAN WELL LRS-100-12 is a 102W switching power supply, designed in a compact, low-profile (1U) format, ideal for industrial, automotive, machinery, and household appliance applications. Its grid-frame design ensures efficient heat dissipation, optimizing performance in confined spaces.

It operates with a universal input range of 85 to 264V AC at 47-63Hz, providing a 12V DC output with a maximum current of 8.5A. The output voltage is adjustable via potentiometer within a range of 10.2V to 13.8V DC, allowing it to be adapted to specific load requirements.

It offers a typical efficiency of 88% and no-load power consumption of less than 0.3W, optimizing energy efficiency. It features reinforced 4000V AC insulation between input and output and maintains a low noise level and ripple of 120mVp-p, ensuring a stable and reliable power supply.

The LRS-100-12 can operate in a temperature range of -30°C to +70°C, making it suitable for demanding conditions. It is also designed to operate at altitudes above 5,000 meters (see data sheet for drift curves).

Its dimensions are 129 x 97 x 30 mm, allowing it to be integrated into equipment with limited space. It can be mounted on a panel, wall, or DIN rail using the KDIN accessory, facilitating installation in different configurations.

It complies with EN55032 Class B without the need for additional components and with EN62368-1, making it suitable for industrial, commercial and residential applications, such as coffee machines, household appliances, automation and electronic equipment.

This model comes with a 3-year warranty and international certifications: CE, TÜV, BSMI, EAC, BIS, KCC, RCM, CCC, UKCA, and UL.
