MEANWELL 150W 12V IP20 POWER SUPPLY

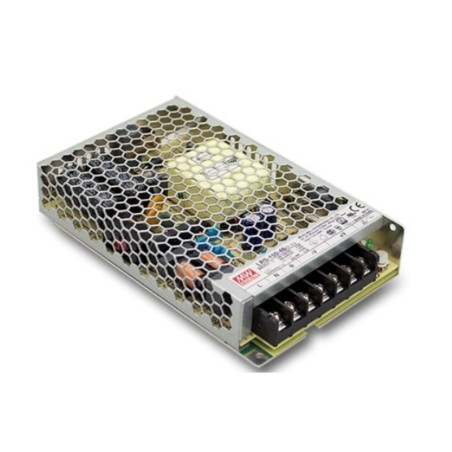

The MEAN WELL LRS-150-12 is a 150W switching power supply, designed in a compact, low-profile (1U) form factor, ideal for industrial, automotive, machinery, and household appliance applications. Its mesh enclosure allows for efficient heat dissipation, ensuring stable operation even in confined spaces.

It operates with a switch-selectable input range of 85-132V AC and 170-264V AC at 47-63Hz, making it easy to adapt to different power grids. It provides a 12V DC output with a maximum current of 12.5A, adjustable via potentiometer between 10.2V and 13.8V DC to suit the load's needs.

Typical efficiency reaches 87.5%, with no-load consumption of less than 0.5W, promoting energy efficiency. It incorporates reinforced 4000V AC insulation between input and output and maintains a low noise level and ripple of 150mVp-p, providing a stable and reliable power supply.

The LRS-150-12 model is designed to operate in a temperature range of -30ºC to +70ºC, and is suitable for operation at altitudes above 5000 meters (see drift curves in the technical data sheet).

Its compact dimensions of 159 x 97 x 30 mm make it easy to integrate into space-constrained equipment. It can be installed on a panel, wall, or DIN rail using the KDIN accessory, providing versatile integration.

It complies with EN55032 Class B regulations without the need for additional filters and with EN62368-1, making it suitable for industrial, commercial and residential applications, such as coffee machines, household appliances, automation and electronic equipment.

This model comes with a 3-year warranty and international certifications: CE, TÜV, BSMI, EAC, BIS, KCC, RCM, CCC, UKCA, and UL.
