MEANWELL 200W 12V IP20 POWER SUPPLY

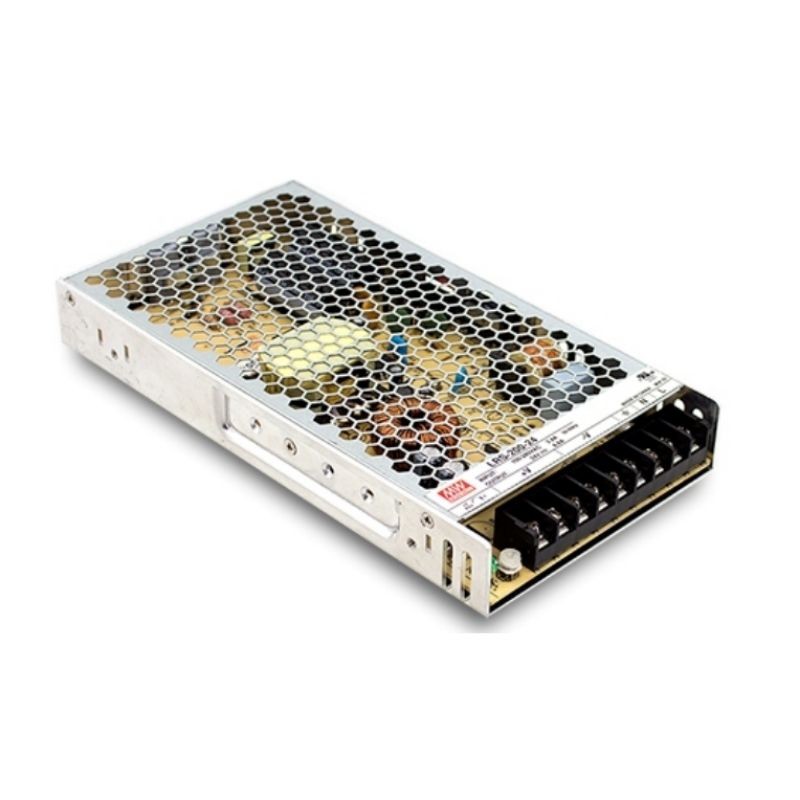

The MEAN WELL LRS-200-12 is a 204W switching power supply, designed in a compact, low-profile (1U) form factor for industrial, automotive, mechanical equipment, and household appliance applications. Its grid-frame design provides efficient heat dissipation, ensuring reliable operation even under demanding conditions.

It offers a switch-selectable input range of 90-132V AC or 180-264V AC at 47-63Hz, allowing it to adapt to different electrical environments. It provides a 12V DC output with a maximum current of 17A, and the voltage is adjustable via potentiometer in the range of 10.2V to 13.8V DC.

This model achieves a typical efficiency of 87.5% and maintains an no-load consumption of less than 0.75W, promoting energy efficiency. It features Class I input protection with a ground connection to ensure electrical safety.

The LRS-200-12 features short-circuit, overload, overvoltage, and temperature protection, and includes a power indicator LED. It is resistant to vibrations up to 5G and withstands surge inputs of 300V AC for 5 seconds, meeting the demands of rugged industrial applications.

It can operate in a temperature range of -25°C to +70°C and is suitable for altitudes of up to 5,000 meters (see drift curve in the data sheet). Its compact dimensions of 215 x 115 x 30 mm facilitate its integration into space-constrained systems.

It complies with EN55032 Class B regulations without the need for additional components and EN62368-1, making it suitable for industrial, residential and commercial applications such as coffee machines, household appliances, automation and displays.

Installation can be carried out on a plate, wall or DIN rail with the KDIN accessory.

The LRS-200-12 model comes with a 3-year warranty and international certifications CE, CQC, BIS, KCC, RCM, BMSI, EAC, UKCA and UL.
