MEANWELL 35W 12V IP20 POWER SUPPLY

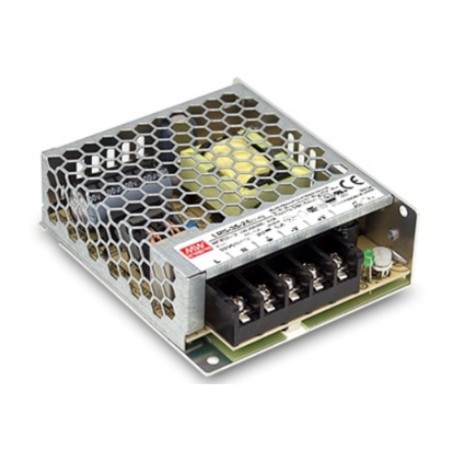

The MEAN WELL LRS-35-12 is a 36W switching power supply, designed in a compact, low-profile (1U) form factor, ideal for industrial, automotive, mechanical equipment, and household appliance applications. Its mesh enclosure ensures optimal heat dissipation, enabling reliable performance in confined spaces.

It supports a universal input range of 85 to 264V AC at 47-63Hz, providing a 12V DC output with a maximum current of 3A. The output voltage is adjustable via potentiometer within a range of 10.2V to 13.8V DC, allowing precise adaptation to the load's needs.

The model stands out for its typical efficiency of 86% and no-load consumption of less than 0.2W, promoting energy efficiency. It incorporates reinforced 4000V AC insulation between input and output, along with a low noise level and 120mVp-p ripple, ensuring a stable, high-quality power supply.

The LRS-35-12 can operate in a temperature range of -30°C to +70°C, including drift curves for use in demanding conditions, even at altitudes above 5,000 meters (see data sheet).

Its compact dimensions of 99 x 82 x 30 mm make it easy to integrate into applications where space is limited. It also allows for installation on a panel, wall, or DIN rail using the KDIN accessory.

It complies with EN55032 Class B regulations without the need for additional components and with EN62368-1 safety regulations, making it also suitable for coffee machines, household appliances and residential applications.

This model comes with a 3-year warranty and international certifications: CE, TÜV, BSMI, EAC, BIS, KCC, RCM, CCC, UKCA, and UL.
