MEANWELL 75W 12V IP20 POWER SUPPLY

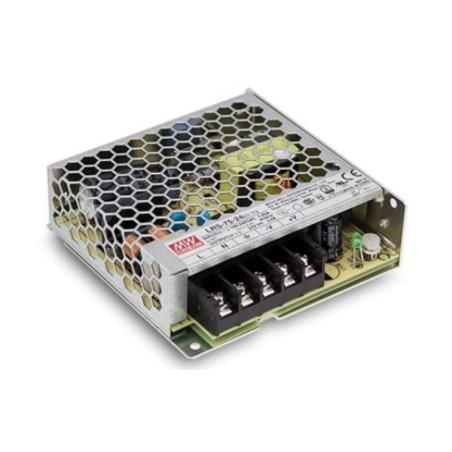

The MEAN WELL LRS-75-12 is a 72W switching power supply, designed in a compact, low-profile (1U) format, ideal for applications in industry, automotive, machinery, and household appliances. Its mesh enclosure allows for optimal heat dissipation, facilitating its integration into space-constrained equipment.

It operates with a universal input range of 85 to 264V AC at 47-63Hz, providing a 12V DC output with a maximum current of 6A. The output voltage is adjustable via potentiometer between 10.2V and 13.8V DC, adapting to the load requirements.

It stands out for its high efficiency of 89% and no-load consumption of less than 0.3W, optimizing energy savings. It features reinforced 4000V AC insulation between input and output, and maintains low noise and a ripple of 120mVp-p, ensuring a clean and stable power supply.

The LRS-75-12 is designed to operate in a temperature range of -30ºC to +70ºC, and is suitable for altitudes up to 5000 meters (see drift curve in technical data sheet).

Its compact dimensions of 99 x 97 x 30 mm make it a versatile solution for space-constrained installations. It can be mounted on a panel, wall, or DIN rail using the KDIN accessory.

It complies with EN55032 Class B without the need for additional filters and with EN62368-1, making it ideal for industrial, commercial and residential applications, including coffee machines, household appliances, automation and consumer electronics.

It comes with a 3-year warranty and has international certifications such as CE, TÜV, BSMI, EAC, BIS, KCC, RCM, CCC, UKCA, and UL.
