| Dimensions | 5000 x 12 x 6 mm |
|---|---|
| Power (W) | 10 W |
| Voltage (V) | 12 V |
| Degree of tightness | IP20 |
| Lumen/m | 100LM/m |
€5.74
Excellent value | Customized projects and technical advice | Up to 7-year warranties
PRO CLUB
Are you a lighting professional or a company?

No questions asked
.png)
Peninsula
.png)
SSL Encryption
.png)
Manufacturer's Officer


![]()
Energy Efficiency

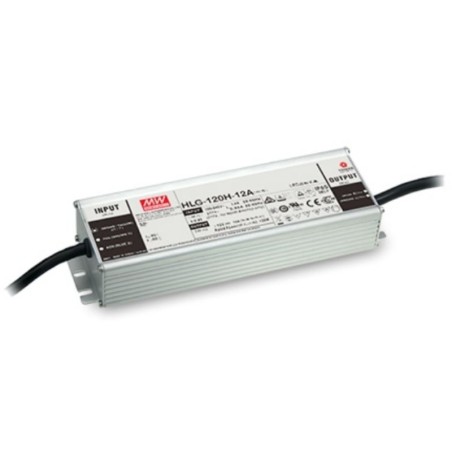

The MEAN WELL HLG-120H-12 power supply is a high-quality LED driver specifically designed to power LED strips, LED bulbs, and LED displays in medium-to-high-power professional applications. Its sealed metal housing with IP67 protection ensures safe operation in outdoor, indoor, and demanding industrial environments.
It operates with an input range of 90 to 305V AC at 47-63Hz, providing a 12V DC output with a maximum current of 10A, automatically adjusting to load demand. Its rated power is 120W, with a typical efficiency of 92%, offering excellent energy efficiency and reliable operation.
The HLG-120H-12 model features reinforced 3750V AC insulation between input and output, and a power factor correction (PFC) >0.95 at 230V AC at full load, optimizing efficiency and minimizing harmonic distortion.
Designed to comply with Class I regulations, it requires grounding through its metal housing. Its operating temperature range extends from -40°C to +70°C (Tc), ensuring its operation in harsh environmental conditions. Measuring 220 x 68 x 38.8 mm, it can be easily integrated into professional installations.
The MEAN WELL HLG series is distinguished by its high efficiency, robustness, and reliability, making it the ideal choice for public, architectural, outdoor, and indoor lighting projects, as well as LED displays. It is also approved for hazardous areas under HL Class I Division 2 regulations in the US, meeting global safety standards.
This model includes a 7-year warranty and is certified by CE, CCC, TUV, KCC, BIS, PSE, ENEC, EAC, RCM, UKCA, and UL.
";| Dimensions | 219 × 63 × 35.5 mm |
|---|---|
| Power (W) | 120 W |
| Voltage (V) | 12 V |
| Degree of tightness | IP65 |
| AC input | 90-305V AC |
| DC output | 12V 6.67A 80W |
| Dimensions | 5000 x 12 x 6 mm |
|---|---|
| Power (W) | 10 W |
| Voltage (V) | 12 V |
| Degree of tightness | IP20 |
| Lumen/m | 100LM/m |
| Dimensions | 16 x 8.5 x 17.6 |
|---|---|
| Power (W) | 0.36 W |
| Voltage (V) | 12 V |
| Opening angle | 170º |
| Degree of tightness | IP67 |
| Dimensions | 199 x 63 x 35.5 mm |
|---|---|
| Power (W) | 150 W |
| Voltage (V) | 12 V |
| Degree of tightness | IP65 |
| AC input | 100-305V AC |
| DC output | 12V 10A 150W |
| Dimensions | 5000x3x1.5mm |
|---|---|
| Power (W) | 4 W |
| Voltage (V) | 24 V |
| Degree of tightness | IP20 |
| Input current | 0.333A/m |
| Dimensions | 5000x8x2.1 mm |
|---|---|
| Power (W) | 7.2 W |
| Voltage (V) | 12 V |
| Degree of tightness | IP20 |
| Input current | 0.60A/m |
