MEANWELL 100W 24V IP20 POWER SUPPLY

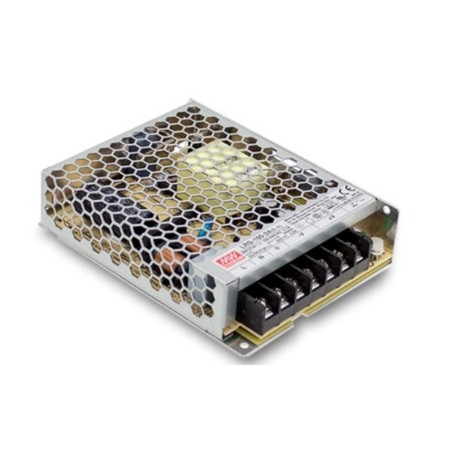

The MEAN WELL LRS-100-24 is a 108W switching power supply, designed in a compact, low-profile (1U) format, ideal for automotive, industrial, machinery, and household appliance applications. Its grid-frame design facilitates excellent heat dissipation, ensuring performance in space-constrained equipment.

It operates with a universal input range of 85 to 264V AC at 47-63Hz, providing a 24V DC output with a maximum current of 4.5A. The output voltage is adjustable via potentiometer within a range of 21.6V to 28.8V DC, precisely adapting to the load requirements.

This model stands out for its high efficiency of 90% and an idle power consumption of less than 0.3W, optimizing energy efficiency and reducing standby power consumption. It features reinforced 4000V AC insulation between input and output, along with low noise and a ripple of 150mVp-p, ensuring a stable and reliable power supply.

The operating temperature range is from -30ºC to +70ºC, and it is designed to work at altitudes above 5,000 meters (see drift curves in the technical data sheet).

With compact dimensions of 129 x 97 x 30 mm, the LRS-100-24 allows for easy integration into projects where space is a key factor. It can be mounted on a panel, wall, or DIN rail using the KDIN accessory, offering installation flexibility.

It complies with EN55032 Class B regulations without the need for additional filters and with EN62368-1, making it suitable for coffee machines, household appliances, automation, telecommunications and electronic equipment in industrial and residential environments.

This model comes with a 3-year warranty and international certifications: CE, TÜV, BSMI, EAC, BIS, KCC, RCM, CCC, UKCA, and UL.
