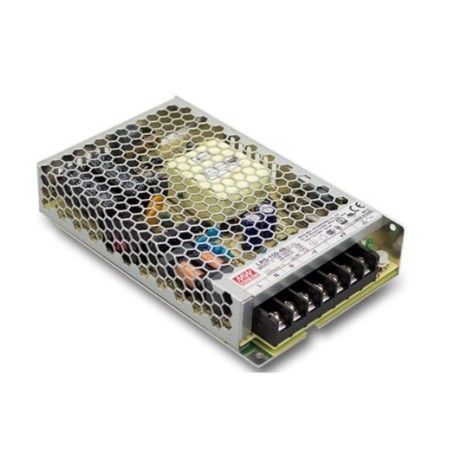

MEANWELL 150W 24V IP20 POWER SUPPLY

The MEAN WELL LRS-150-24 is a 156W switching power supply, designed in a compact, low-profile (1U) form factor, ideal for industrial, automotive, machinery, and household appliance applications. Its mesh enclosure facilitates heat dissipation, ensuring stable and reliable performance in confined spaces.

It supports a switch-selectable input range of 85-132V AC and 170-264V AC at 47-63Hz, allowing it to adapt to different electrical installations. It provides a 24V DC output with a maximum current of 6.5A, adjustable via potentiometer in the range of 21.6V to 28.8V DC depending on load demand.

This model achieves a typical efficiency of 89% and maintains an unloaded power consumption of less than 0.5W, optimizing energy consumption. It features reinforced 4000V AC insulation between input and output and a low noise level and ripple of 200mVp-p, ensuring a quality power supply.

The LRS-150-24 can operate in a temperature range of -30°C to +70°C and is designed for altitudes exceeding 5,000 meters (see drift curve in the data sheet). With dimensions of 159 x 97 x 30 mm, it allows for easy integration into equipment with limited space.

It can be installed on a plate, wall or DIN rail using the KDIN accessory, offering great versatility in its assembly.

It complies with EN55032 Class B regulations without the need for additional components and EN62368-1, making it suitable for industrial, commercial and residential applications, such as coffee machines, automation, household appliances and professional electronics.

The model comes with a 3-year warranty and international certifications: CE, TÜV, BMSI, EAC, BIS, KCC, RCM, CCC, UKCA, and UL.
