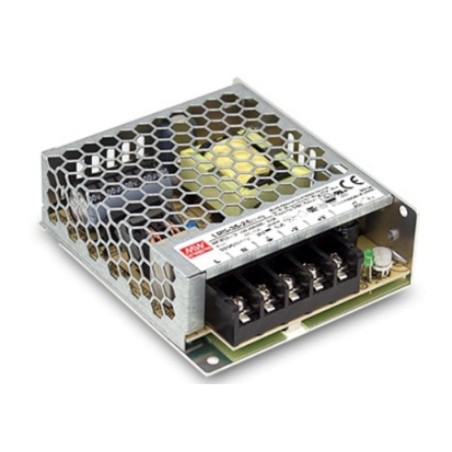

MEANWELL 35W 24V IP20 POWER SUPPLY

The MEAN WELL LRS-35-24 is a 36W switching power supply, designed in a compact, low-profile (1U) format, ideal for industrial, automotive, machinery, and household appliance applications. Its grid-frame design optimizes heat dissipation, allowing for integration into space-constrained equipment.

It operates with a universal input range of 85 to 264V AC at 47-63Hz, offering a 24V DC output with a maximum current of 1.5A. The output voltage is adjustable via potentiometer between 21.6V and 28.8V DC, adapting to the load requirements.

The model stands out for its high efficiency of 88% and a no-load power consumption of less than 0.2W, optimizing energy efficiency. It incorporates reinforced 4000V AC insulation between input and output, with a low noise level and 150mVp-p ripple, ensuring a clean and stable power supply.

Its operating temperature range extends from -30°C to +70°C, allowing for use in demanding environmental conditions. It is also designed to operate at altitudes above 5,000 meters (see data sheet for drift curve).

The compact dimensions of 99 x 82 x 30 mm make it easy to install in space-constrained systems. It can be mounted on a panel, wall, or DIN rail using the KDIN accessory, providing integration flexibility.

The LRS-35-24 complies with EN55032 Class B without the need for additional components and with EN62368-1, suitable for coffee machines, household appliances and residential applications.

It comes with a 3-year warranty and has international certifications such as CE, TÜV, BSMI, EAC, BIS, KCC, RCM, CCC, UKCA, and UL.
