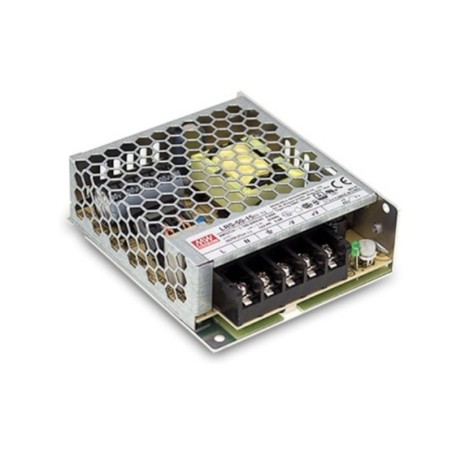

MEANWELL 50W 24V IP20 POWER SUPPLY

The MEAN WELL LRS-50-24 is a 52.8W switching power supply, designed in a compact, low-profile (1U) form factor, ideal for industrial, automotive, machinery, and household appliance applications. Its mesh enclosure provides efficient heat dissipation, ensuring reliable performance even in confined spaces.

It operates with a universal input range of 85 to 264V AC at 47-63Hz, providing a 24V DC output with a maximum current of 2.2A. The output voltage is adjustable via potentiometer between 21.6V and 28.8V DC, allowing it to be adapted to the load specifications.

This model stands out for its typical efficiency of 88% and no-load consumption of less than 0.2W, promoting energy efficiency. It features reinforced 4000V AC insulation between input and output and a low noise level and ripple of 150mVp-p, ensuring a stable, high-quality power supply.

The operating temperature range extends from -30°C to +70°C, allowing for use in extreme environmental conditions. It is also designed to operate at altitudes above 5,000 meters (see drift curves in the data sheet).

Measuring 99 x 82 x 30 mm, the LRS-50-24 is perfect for integration into systems where space is a constraint. It can be mounted on a panel, wall, or DIN rail using the KDIN accessory, offering installation versatility.

It complies with EN55032 Class B without the need for additional components and with EN62368-1, making it suitable for residential, commercial and industrial applications, such as coffee machines, household appliances and automation.

This model includes a 3-year warranty and has international certifications such as CE, TÜV, BSMI, EAC, BIS, KCC, RCM, CCC, UKCA, and UL.
