MEANWELL 75W 24V IP20 POWER SUPPLY

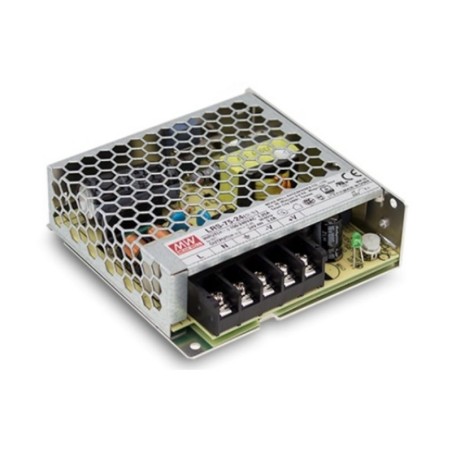

The MEAN WELL LRS-75-24 is a 76.8W switching power supply, designed in a compact, low-profile (1U) format, ideal for industrial, automotive, machinery, and household appliance applications. Its grid-frame design promotes excellent heat dissipation, ensuring reliability in confined installations.

It operates with a universal input range of 85 to 264V AC at 47-63Hz, providing a 24V DC output with a maximum current of 3.2A. The output voltage is adjustable via potentiometer within a range of 21.6V to 28.8V DC, adapting to the specific needs of the load.

The LRS-75-24 offers a typical efficiency of 90% and maintains an no-load power consumption of less than 0.3W, making it highly energy efficient. It features reinforced 4000V AC insulation between input and output and low noise and ripple of 150mVp-p, ensuring a stable, high-quality power supply.

It operates within a temperature range of -30°C to +70°C and is suitable for work at altitudes above 5,000 meters (see drift curves in the data sheet). With compact dimensions of 99 x 97 x 30 mm, it is ideal for projects with limited space.

Installation can be carried out on a plate, wall or DIN rail using the KDIN accessory, providing flexibility in integration.

It complies with EN55032 Class B regulations without the need for additional components and EN62368-1, making it suitable for industrial, commercial and residential applications, such as coffee machines, household appliances, automation and electronic equipment.

The LRS-75-24 model comes with a 3-year warranty and international certifications such as CE, TÜV, BSMI, EAC, BIS, KCC, RCM, CCC, UKCA, and UL.
