MEANWELL POWER SUPPLY 350W 24V IP20 14.6A

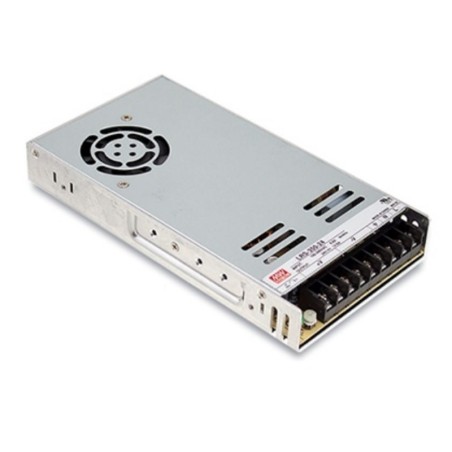

The MEAN WELL LRS-350-24 is a 350.4W switching power supply, designed in a compact, low-profile (1U) form factor, perfect for industrial, automotive, machinery, and household appliance applications. Its mesh enclosure ensures efficient heat dissipation, and it features a built-in fan with automatic on/off control for efficient cooling management.

It features a switch-selectable input range of 90-132V AC and 180-264V AC at 47-63Hz, adapting to different electrical environments. It provides a 24V DC output with a maximum current of 14.6A, adjustable via potentiometer in the range of 21.6V to 28.8V DC, allowing it to adapt to the load's needs.

Typical efficiency is 88%, with no-load consumption of less than 0.75W, optimizing energy efficiency. It features Class I input protection with grounding for enhanced protection.

The LRS-350-24 integrates multiple protections: short circuit, overload, overvoltage, and temperature. It features a power indicator LED and is resistant to vibrations up to 5G, making it ideal for demanding industrial environments. It also withstands surges of up to 300V AC for 5 seconds, offering added robustness.

Its operating temperature range is from -25°C to +70°C, and it is designed to operate at altitudes of up to 5,000 meters (see drift curves in the data sheet). Its compact dimensions of 215 x 115 x 30 mm allow for easy integration into systems with limited space.

Installation can be carried out on a plate, wall or DIN rail using the KDIN accessory.

It complies with EN55032 Class B and EN62368-1 regulations, making it suitable for coffee machines, automation, household appliances, industrial and commercial electronic equipment.

It comes with a 3-year warranty and has international certifications such as CE, CQC, BIS, KCC, RCM, BMSI, EAC, UKCA, and UL.
